P Series Power Packs by Magnaflux?

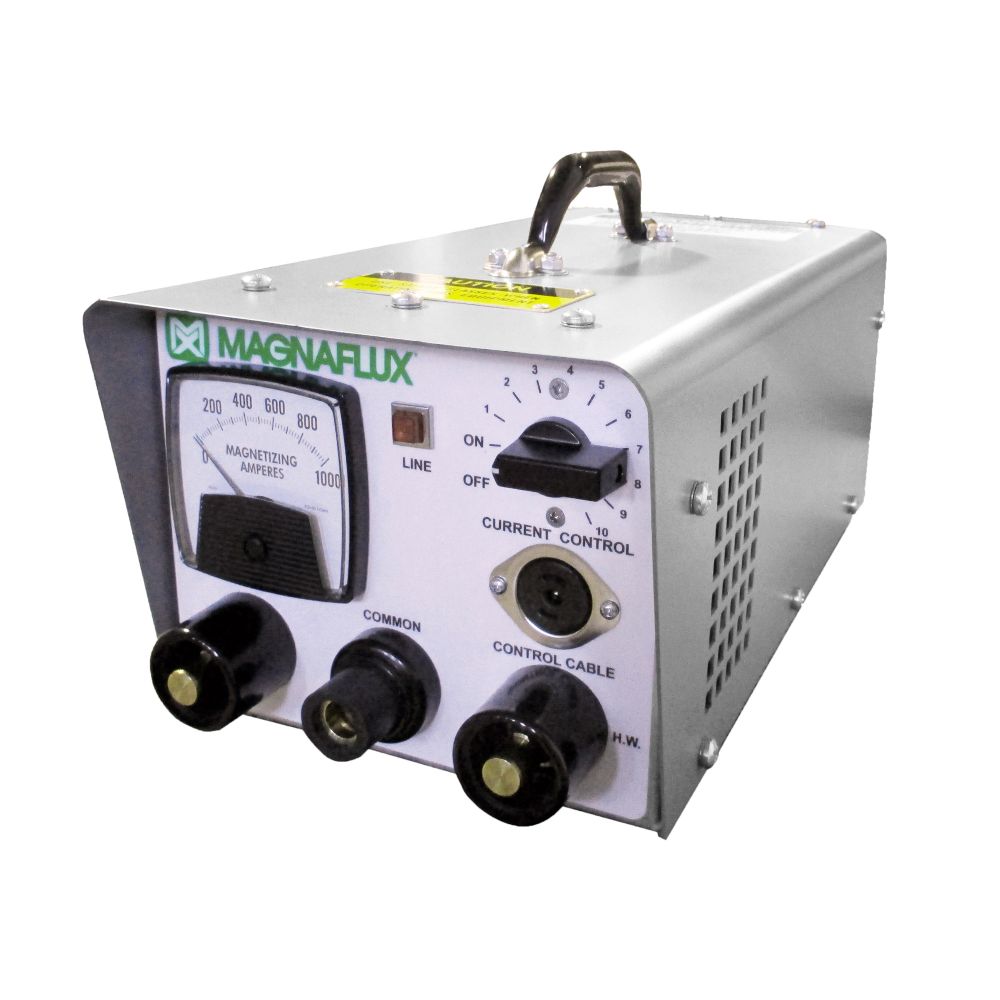

P Series Portable Power Packs

Portable AC coil for detecting surface cracks.

Portable Power Packs are convenient and economical inspection units that are used in a wide range of magnetic particle applications that require only moderate power. The Magnaflux Portable Power Packs are ideal for large or heavy parts, in-service mobile equipment, or job-site welds.

  • Find surface defects with AC current; switch cable connection to half wave DC (HWDC) for near-surface flaws
  • Locate defects in any direction using prods, central conductor, coil (wrap part with 3-5 turns of cable)
  • Infinitely variable current control
  • Demagnetize your parts in AC mode by slowly turning the current dial to zero
  • Built-in automatic-reset circuit breaker
  • May be used as the main power source for the Magnaflux MAG Kit modular bench inspection system
  • P Series Benefits:

    • Either-end terminals for quick changeover
    • Unit comes with control cable with activation button

    Specifications

      P 70 P 1500

    Dimensions 17.52 L x 9 W x 8 H
    (44.5 x 22.9 x 20.3 cm)
    22 L x 9.5 W x 9.5 H
    (55.9 x 24.1 x 24.1 cm)

    Maximum Output* 750 amps, AC or HWDC 1500 amps, AC or HWDC

    Available Voltages 115, 230; 50 or 60 Hertz;
    single phase power
    230,460, 50 or 60 Hertz;
    single phase power

    Weight 35 lbs (15.9 kg) 93 lbs (42.2 kg)

    Line Current* 26 Amps @ 115 VAC
    13 Amps @ 230 VAC
    42 Amps @ 230 VAC
    21 Amps @ 460 VAC

    Maximum Duty Cycle 2 Minutes ON
    2 Minutes OFF
    2 Minutes ON
    2 Minutes OFF

    *Current ratings are based on the use of two 15-foot lengths of 4/0 Cable

    Power Pack Part Numbers:

  • 190575: P 70, 115v
  • 190575-1: P 70, 230v
  • 198500: P 1500, (Must specify 230v or 460v) at time of order
  • P-70 Product Data Sheet Date: October 2014
    P-1500 Product Data Sheet Date: October 2014
