Stationary Inspection LED UV Lamp

Stationary Inspection LED UV Lamp for Fluorescent NDT

The ST700 is an inspection-grade overhead LED UV flood lamp with high-intensity UV-A illumination for non-destructive testing examinations such as fluorescent penetrant and magnetic particle testing.
The ST700 projects an ultra-wide, even beam of UV-A light straight onto the inspection area, allowing for quick examination of parts with minimal part handling. The high intensity beam makes indications stand out bright and clear, speeding up the inspection process. Proprietary optics and integrated filter minimize visible light emission and prevent decline of UV intensity over time.
The ST700 projects an ultra-wide, even beam of UV-A light straight onto the inspection area, allowing for quick examination of parts with minimal part handling. The high intensity beam makes indications stand out bright and clear, speeding up the inspection process. The ST700 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile.

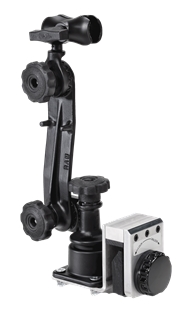

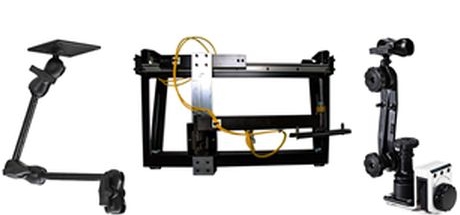

The IP65 aluminum case stands up to harsh environments and a range of mounting and angling options allow it to be set up anywhere in the inspection process; from mag benches to wash stations.


Features

  • High intensity compliant UV-A illumination
  • 20 x 26 in wide, uniform beamon standard model at 36 in
  • IP65 sealed construction prevents damage from water, vapor or dust
  • Angled mounting brackets


    •

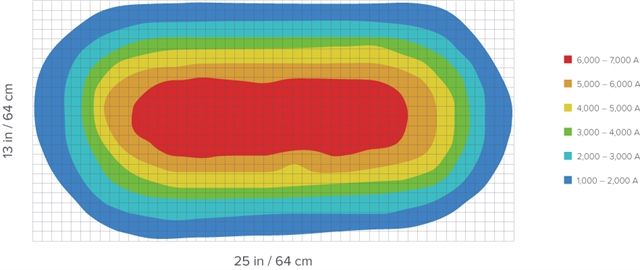

  • No hot-spots in the beam profile
  • No internal fan necessary
  • Aerospace prime and OEM certified
  • Certified to ASTM, AITM, Rolls Royce RRES and Nadcap

    • Benefits

  • Inspect more of the part at once thanks to the ultra-wide beam
  • Eliminate additional steps and equipment involved with using a secondary hand-held inspection lamp

    • Minimize risk of missing indications

  • Make indications stand out bright and clear thanks to the high-intensity LED Technologyh
  • Mount the light out of the way, up to 46 in / 117 cm above the inspection surface while still maintaining inspection level intensity

    • Real-world reliability

  • Fully sealed construction prevents dust and water damage
  • Maintain UV intensity and coverage over time with non-clouding, proprietary lenses
  • Rugged, impact resistant metal construction designed for NDT environments

    • Work in comfort

  • Easily maintain and changeover equipment with built-in white light
