Y-7 AC/DC Electromagnetic Yoke

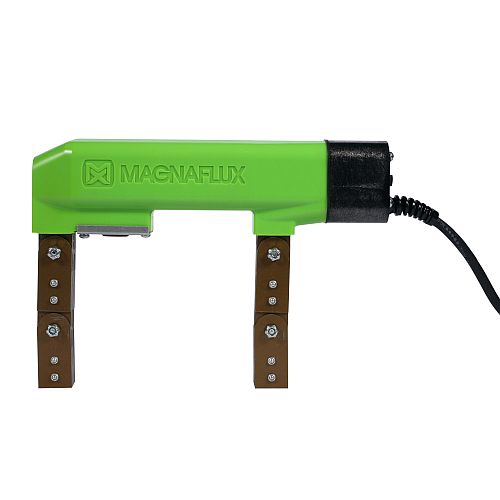

Magnaflux Y-7 AC-DC Magnetic Particle Yoke

The Y-7 is a durable, high-strength AC/DC magnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.

Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the Y-7 is ideal for inspection of welds and other remote testing.

Solid-state controls allow the operator to use AC magnetic fields for surface indications or DC magnetic fields for sub-surface indications to meet all inspection needs.

The Y-7 is also available in the Y-7 MV Kit which comes with a Y-7 yoke, #1 Gray and #8A Red magnetic powders, a paint marker and hand cleaner towels in a convenient carrying case.

Benefits - Features

  • Sealed, durable construction
  • AC and DC operation options for surface and sub-surface inspection
  • Exceeds ASTM lifting specifications
  • Individual serial number for each yoke

Ideal Applications: Demanding environments, Field testing, In-service inspections, Spot inspections, Weld inspection

Defect Examples: Fatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Welding slag

Standards: ASME BPVC, ASTM E1444, ASTM E709

Part Number and Container Size:
  • 625643: Y-7, 115V
  • 625644: Y-7, 230V
  • 43509: Y-7, 115V Kit
  • 620741: Y-7, 230V Kit

The Y-7 is also available in the Y-7 MV Kit which comes with a Y-7 yoke, #1 Gray and #8A Red magnetic powders, a paint marker and hand cleaner towels in a convenient carrying case.
  • 43509: Y-7, 115V
  • 620741: Y-7, 230V
