B-300, Big Performance in a Small Package

B-300 Contour Probe is a lightweight (7½ pounds) Magnetic Inspection Yoke designed to perform magnetic particle inspections quickly and reliably.

As the other Parker probes, the B-300 has fully adjustable legs which allow the strong AC field to be applied directly to the precise area to be inspected, regardless of part size or mass.

  • IP54
  • Handheld AC Magnetic Yoke
  • Units are available in 115, 230 VAC

B-300MR CONTOUR PROBE

The B300-MR contains electronic circuitry that is sealed within the instruments housing. The external push button switch magnetically activates the power circuit from the outside. There is no electrical contact between the switch and internal circuit. This instrument is ideally suited for high moisture areas.

The B-300 Contour Probe is a lightweight (7½ pounds) Magnetic Inspection Yoke designed to perform magnetic particle inspections quickly and reliably.
As with the other Parker probes, the B-300 has fully adjustable legs which allow the strong AC field to be applied directly to the precise area to be inspected, regardless of part size or mass.

  • IP65
  • Units are available in 115, 230 VAC


Compare Specifications


B-300
B-300S
B-300MR
B-300MRS

Line Voltage Single Phase 115 VAC
50/60 Hz
230 VAC
50/60 Hz
115 VAC
50/60 Hz
230 VAC
50/60 Hz

Line Current 6 A 3 A 6 A 3 A

Duty Cycle 50 % 50 % 50 % 50 %

Weight 7½ Lbs. 7½ Lbs. 7½ Lbs. 7½ Lbs.

Construction Polyurethane-filled glass/nylon housing 10 foot / 3 wire power cord

Span 0-12 in. across poles 0-12 in. across poles 0-12 in. across poles 0-12 in. across poles

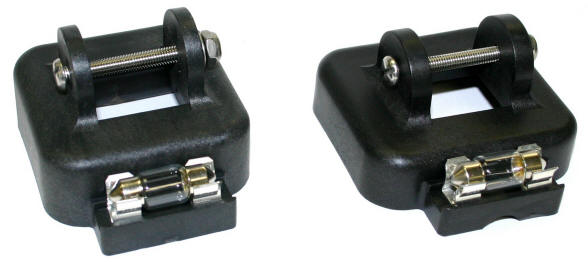

Y-300 and Y-400 Yoke Lights

  • The Y-300 Yoke Light is a molded inspection light designed to fit the Parker B-300 Contour Probe that produces substantial close-in illumination for magnetic testing. The light operates from the induction of the AC magnetic field produced by the yoke. A small coil wound within the molded light housing produces 12 volts AC which operates the small cylindrical shaped bulb. There are no wiring connections necessary for installation.
    Note: The light operates in the AC MODE ONLY.

  • Y-400 Yoke Light is a molded inspection light designed to fit a DA-400 or a B-100 Contour Probe that produces substantial close-in illumination for magnetic testing. The light operates from the induction of the AC magnetic field produced by the yoke. A small coil wound within the molded light housing produces 12 volts AC which operates the small cylindrical shaped bulb. There are no wiring connections necessary for installation.
    Note: The light operates in the AC MODE ONLY.

  • Both are molded from durable glass-filled nylon which is extremely resistant to shock, wear and chemicals.
Both are molded from durable glass-filled nylon which is extremely resistant to shock, wear and chemicals.
