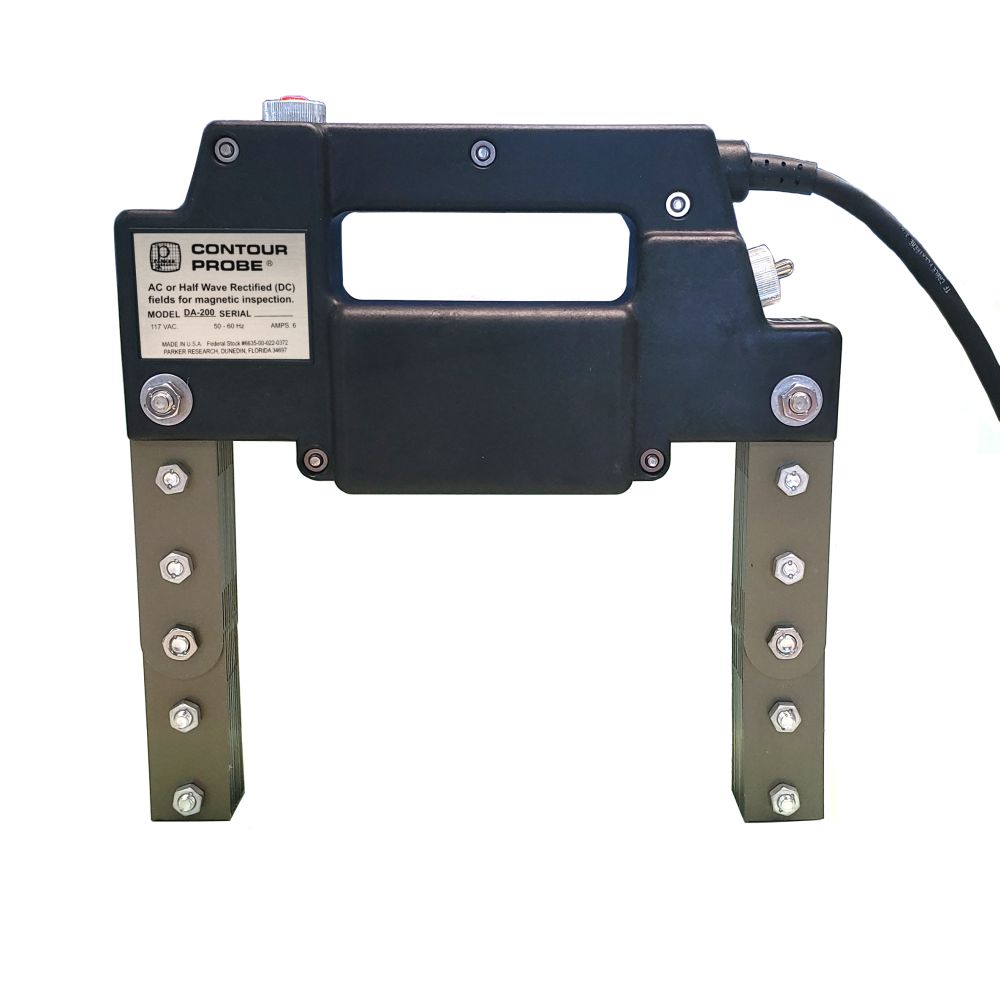

Parker Research DA 200 AC / DC Yoke

DA-200 Series Contour Probes

  • Versatility and powerful performance in a rugged, reliable instrument
  • Constant AC or pulsed DC fields with the flip of a switch; for the location of surface and some sub-surface defects
  • Apply continuous or residual magnetic fields and demagnetize too
  • Use with dry powder, wet fluorescent or visible
  • High impact-molded housing
  • One-year repair/replacement guarantee
  • The DA-200 Contour Probe is a portable, self-contained instrument designed to produce a magnetic field on or within ferro-magnetic materials. The selective AC and pulsed DC functions are built into a single reliable instrument.

    The AC mode produces an intense AC field for detection of surface defects and demagnetizing after inspection. The DC mode produces an intense pulsed DC field for detection of some sub-surface defects. Combined with the flexibility of articulating legs and a rugged molded housing, the Contour Probe can be used on nearly any part or surface contour... in the lab, factory, or field site.

    Your magnetic particle applications need the versatility and reliable performance advantages of the Parker Contour Probe. An industry standard with 45 years of NDT service.

    Compare Specifications



    DA-200

    DA-200S

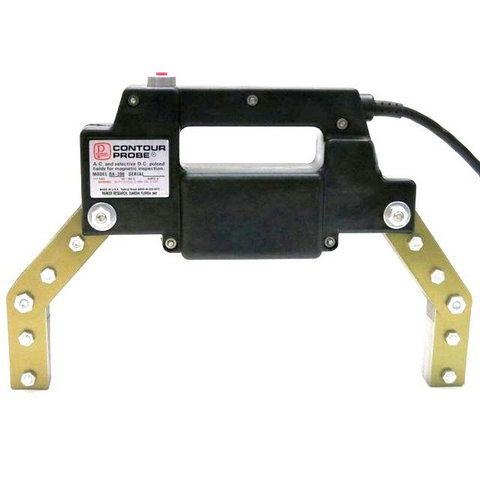

    A-210

    A-210S

    Physical 11 H" x 10.75 L" x 2.75 W"

    Line Voltage Single Phase 115 VAC
    50/60 Hz
    230 VAC
    50/60 Hz
    115 VAC
    50/60 Hz
    230 VAC
    50/60 Hz

    Line Current 6 A
    AC/DC
    4 A
    AC/DC
    9.5 A
    AC
    4 A
    AC

    Duty Cycle 2 minutes on – 2 minutes off

    Weight 12 lbs (5.44 kg)

    Construction Glass-filled nylon housing 10 foot (3 m) 3-wire power cord

    Span 18 in. (457 mm) across poles

    Field AC/DC AC/DC AC AC

    Contour Probe Kits, Steel or Plastic

    (Product Operating Instructions) Date: August 2013
