Positector Inspection Kit for Coating Thickness, Environmental, Surface Profile

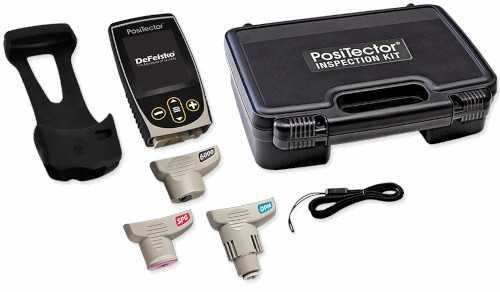

    Each pre-configured inspection kit contains

  • PosiTector Gage Body – Standard or Advanced
  • PosiTector 6000 Coating Thickness Probe—select from a variety of measurement ranges and probe styles
  • PosiTector DPM Environmental Probe
  • PosiTector SPG Surface Profile Probe
  • precision plastic shim(s)
  • glass zero plate and metal shim,
  • protective rubber holster
  • wrist strap
  • 3 AAA alkaline batteries
  • 3 instruction manuals
  • protective lens shield
  • convenient carrying case
  • 3 Long Form Certificate of Calibration traceable to NIST
  • USB cable
  • PosiSoft Software
  • two (2) year warranty on gage body and probes.

Standard Model Inspection Kits

Each Standard Kit contains a PosiTector Standard gage body and 3 probes—coating thickness, environmental, and surface profile.

Coating Thickness measurement with Standard models

  • NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

    • Environmental Monitoring with Standard models

  • Storage of 2,500 datasets per probe—stored readings can be viewed or downloaded.
  • Auto Log Mode runs unattended on batteries for up to 60 hours or continuously via USB

    • Surface Profile measurement with Standard Models

  • NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

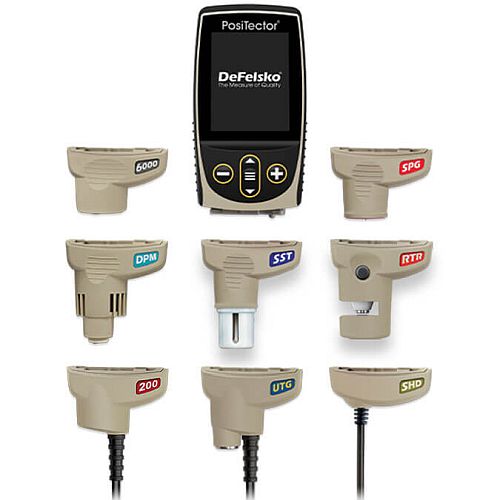

    • Defelsko Various Probes


    Advanced Model Inspection Kits

    Each Advanced Kit contains a PosiTector Advanced gage body and 3 probes—coating thickness, environmental, and surface profile.
    Features include:

  • NEW Touchscreen keyboard for renaming batches, adding notes, and more
  • Live graphing of measurement data
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

  • NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches

    • Coating Thickness measurement with Advanced models

  • NEW Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
  • 3 Scan Modes—increase measurement speed to 180+ readings per minute
    • Normal – take continuous readings without lifting the probe
    • Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
    • Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
  • NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90:10 features determine if film thickness over a large area conforms to user-specified min/max levels


    • Environmental Monitoring with Advanced models

  • NEW Storage of 250,000 datasets from multiple probes in up to 1,000 batches
  • Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals
  • User defined alarms for all parameters—visible and audible warnings. Receive email alerts when connected to WiFi
  • Trend Charts graph readings in real-time

    • Surface Profile measurement with Advanced models

  • NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • SmartBatchTM allows entry of user-defined parameters and criteria to comply with standards such as ASTM D4417 and SSPC PA-17
    • Positector 6000 Kit


    Positector Inspection Kit Product Data Sheet
