Danatronics ECHO-9 Color series comes in 4 models ranging from our ECHO 9 to the fully loaded ECHO-9DLCW
that includes Echo to Echo, B-Scan, a 100k reading data logger and a live Waveform (A-Scan)

Danatronics offers our newest ultrasonic thickness gage line, the ECHO 9 series. ECHO 9 represents our most advanced thickness gage ever. ECHO 9 offers a 3.5" high resolution sunlight readable color display with live A-Scan, echo to echo to ignore coatings, B-Scan, data logger with up to 32GB of SD card memory and interface to Microsoft excel. The ECHO 9 is available in 4 models including the ECHO 9, ECHO 9DL, ECHO 9CW and ECHO 9DLW. The vibrate on alarm feature is the world´s first and is great for loud environments

Features:

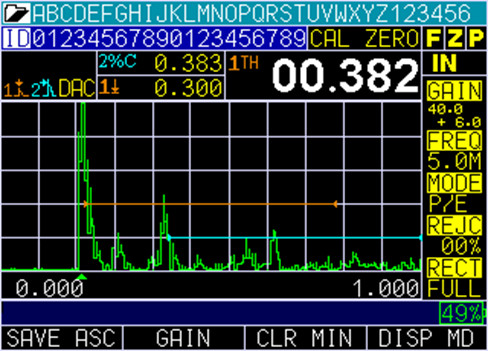

Simultaneous Live Color A-Scan and Thickness Display
3.5" Sunlight readable color display
Field upgradeable software options including Data logger with B-Scan, Live Waveform and Precision Mode (.0001" or .001mm)
Fast/Min and Fast/Max displays minimum, maximum or both simultaneously with actual thickness at 25 Hz
Compatible with a wide variety of Danatronics dual and single element transducers
Multiple languages
Data logger interfaces with Microsoft Excel
Designed for IP67
Made in the USA

Typical Applications:

Boiler Tubes
Pressure Vessels
Storage Tanks
Ship Hulls
Pipes

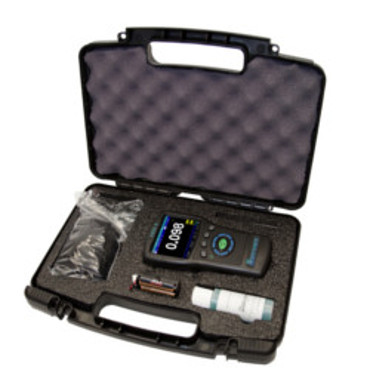

Standard Package ECHO 9 series ultrasonic thickness gage, DKS-537, 5MHz, 0.375 inch diameter transducer with potted cable, 2oz bottle of couplant, operation manual, Data XL interface program, USB cable, Charger Adapter, Transport Case
Size: Length 7.25" x Width 4.00" x Height 2.00" (184mm x 101.6mm x 50.8mm)
Weight: 1.15 lbs (.52 kg) with internal Li-Ion battery, 1.0 lb. (.45 kg) with optional Alkaline tray including 3 AA batteries
Display: 3.5" high resolution color display, 320 x 240 pixels (1/4 VGA), sunlight readable, including multiple color choices
Backlight: Light Emitting Diode (LED) backlight. Includes variable light intensity, indoor and outdoor modes
Bandwidth: 0.5-30 Mhz (-3dB)
Measurement Rate: 4 Hz or 25 Hz.
Pulser: 150V, Square Wave
Range: Thickness range depends on gage type, probe selection and material conditions. Typical range in corrosion mode, .020"-23" (.508 - 584 mm)
Calibration: Cal zero, Cal velocity, Two-point calibration or Auto Calibration performs a two-point calibration using a 5-step test block
Material Velocity Range: .0200 in/µsec-.7362 in/ µS (0.508-18.699 mm/ µS)
Batteries: Standard 3.7 V Li-Ion internally rechargeable battery (16-20 hours) or optional alkaline tray for 3 AA batteries (8-12 hours)
Data XL: Interface program to send and receive stored readings, latest firmware and application set up files as two way communication from ECHO to computer
USB: USB 2.0
Stored Setups: Storage and recall of calibration and set up files
Memory: Internal memory standard on all models. For Data logger models 2GB micro SD card standard and expandable up to 32GB
Gain: Low, Standard and High for gages without waveform. 20-94 db in 1 db increments
Zoom: Automatically centers echos in the center of the display independent of material thickness
Units: English, Metric, Microseconds
Temperature correction: Software to correct for varying sound speed as a function of entered temperature
Languages: English, French, German, Spanish, Italian, Russian, Czech, Finnish, Chinese, Japanese, Hungarian
Fast Min/Max: Displays minimum, maximum or both simultaneously with actual thickness at 25 Hz.
Alarms: Gage vibrates and beeps. Display changes color based on alarm condition
Transducers: Single, dual, delay lines, contact, immersion
Measurement Types: Main bang to first backwall echo, echo to echo and velocity mode (displays acoustic sound speed based on entered thickness)
Freeze Mode: Direct access to freeze display (ideal for high temperature applications)
Hold Mode: Holds display to retain last thickness reading
Shut off: selectable auto shut off 1-31 minutes or never shut off
Differential Mode: Displays the difference from actual thickness measurement in absolute or percentage of a user entered reference value
Resolution: .001" or .010" as corrosion gage and .001" or .0001" in Precision mode
Temperature (Gage operating): -4 to 122F (-20 to 50C)
Transducer Connector Type: Lemo 00 (2qty)
Transport case: Hard Plastic with high density molded foam cut out for gage and most accessories
Accessory Mount: ECHO 9 includes a 1/4x20 standard connection point on the back of the unit to allow for a multitude of accessories including a magnetic pipe attachment and a Gorilla Pod
Available Software Options: Data logger with B-scan, Live waveform, Precision mode, Oxide scale, Coating thickness
Hardware Options: EZ Scan B Scan Encoder, Bluetooth, Alkaline battery tray, rubber boot
Package: Designed for IP67 rating, custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing
Certifications: CE certified, RHOS compliant, designed for IP67
Warranty: Limited 2 year warranty under normal use on parts and labor for gage. Optional Dan-A-Care to add up to 3 more years

The ECHO 9 series is available in 4 models to suit your every budget and application

ECHO 9

Hand-Held Digital Ultrasonic thickness gage with 3.5" Sunlight Readable Color Display for thickness only including: Echo to Echo Software, Plastic Carrying Case, 2 Oz. bottle of couplant, Re-Chargeable Li-Ion batteries, Instruction manual and DKS537, 5MHz x .375" diameter Transducer with potted cable, Charger adapter with USB cable and data xl interface program

ECHO 9W

Includes all the features of the ECHO 9 plus a live color waveform (A-scan). (No Data logger) with the live waveform, you can adjust range, gain, blanks and rectification.

ECHO 9DLW

Combines all the features such as Hand-Held Digital Ultrasonic thickness gage with live Color Waveform, "unlimited" thickness readings via internal Data logger with removable micro sd card including: Plastic Carrying Case, 2 Oz. bottle of couplant, Rechargeable Li Ion Battery, Instruction manual and DKS537, 5MHz x .375" diameter Transducer with potted cable, Echo to Echo, and B-Scan, Custom Rubber boot with built in bail and 4 point chest harness, Charger adapter with USB cable and Data XL interface program to export saved readings to p.c. (excel)

All these options are field upgradeable via the keypad. Danatronics offers a unique and convenient way to upgrade your gages. The upgrades are done directly from your gauges keypad and do not require the use of a computer. The advantages of field upgradability are:

Never worry about downtime
No extra shipping cost
Less cost of ownership due to less freight and duty
No need to worry about the product being obsolete
Simple and Fast to perform

The Field upgradeable options for the ECHO 9 series are:

Live Waveform

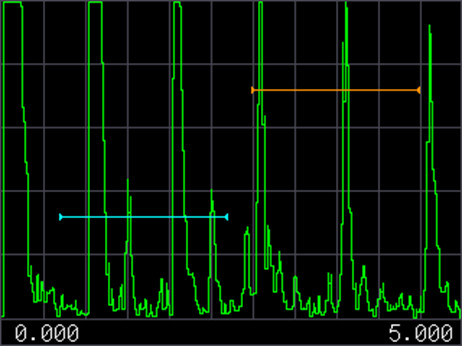

Comes standard with the ECHO 9W and ECHO 9DLW The live waveform (A-scan) is used to verify reading stability. With the live waveform the operator can adjust gain, range, rectification and 2 forms of blanking to set the gage to ignore unwanted noise or mode converted echoes.

Datalogger

Comes standard with the ECHO 9DL and ECHO 9DLW

The ECHO Series Datalogger stores millions of readings to its removable sd card as linear, 2D, 3D or boiler in alpha numeric or thousands of waveforms (if gage is equipped with waveform option). Thickness values along with the i.d. information and all gage set up parameters are exported to Microsoft excel via the no-charged, included Data XL interface program provided with every Danatronics thickness gage. Our Datalogger also interfaces with Ultrapipe.

Encoded B-Scan

Software comes standard with the ECHO 9DLW, encoder and hardware upgrades sold separately

Requires hardware modification to either ECHO 9DLW or ECHO 9DL, uses EZ Scan 4 as a magnetic wheel, linear axis encoder.

The EZ Scan 4 combined with our ECHO 9DLW is the ultimate in easy to use, affordable magnetic wheel linear axis encoder for B-scan surveys with reports. The EZ Scan 4 sends a pulse to the gage to take a thickness reading while drawing the B-scan image based on one axis. The gage keeps track of the distance traveled (DT) so you can cross reference any wall thinning areas to the image displayed and saved into memory. To show A-scans and B-scans on the computer, you must purchase separately our Data XL Pro.

Live Waveform

Comes standard with the ECHO 9CW and ECHO 9DLW

The live waveform (A-scan) is used to verify reading stability. With the live waveform the operator can adjust gain, range, rectification and 2 forms of blanking to set the gage to ignore unwanted noise or mode converted echoes.
