EHC Series of Thickness Gauges
The EHC-09 series of Thickness Gauges come in a variety
of models.
comes in 10 models ranging from our base unit the EHC-09A
to the EHC 09DL-W in the Monochromatic display and then there are 4 models with color displays.
The EHC-09-C to the EHC-09DL-CW.
Danatronics offers our EHC-09 Series of A-Scan Thickness Gauges as the top of the line gages for corrosion applications. The EHC-09 Series offers many standard and practical features including a sunlight readable monochromatic and color display with live A-Scan, echo to echo to ignore coatings, B-Scan, 100K thickness reading datalogger with interface to Microsoft excel. The Color Wave is available in 8 models The vibrate on alarm is a world's first and is great for loud environments!
Typical Applications:
- Boiler Tubes
- Pressure Vessels
- Storage Tanks
- Ship Hulls
- Containers
- Home Oil Tanks
- Pipes
- Steam Lines
- Compressors
- Shafts
- Vibrate on alarm
- Illuminating keypad for easy to view go/no-go thickness values
- Up to 50 hour battery life with 2 "AA" batteries
- Automatic Zero Capability
- 2 point calibration
- Gain Boost
- Multiple dual and single element transducer options including high temperature - up to 1000° F (537° C)
- Echo To Echo option to ignore coatings
- B-Scan option
- 100K alphanumeric Datalogger with export to excel
- IP54 rated
- B-Scan – with optional magnetic wheel encoder
The color Display versions offer:
- Vibration and color change on alarm
- Control of Gain, Blanking, Range, RF and Rectify Modes
- Live Simultaneous Color Waveform and Thickness Display
EHC 09A

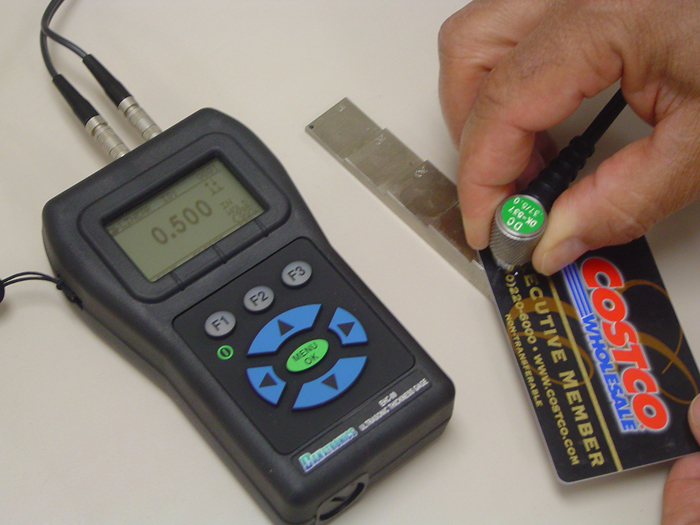

Hand-Held Digital Ultrasonic thickness gage including: Plastic Carrying Case, 2 Oz. bottle of couplant, 2 AA batteries, DKS-537 , 5 MHz, .375 " diameter Transducer with potted cable. Has Only 3 transducer selection options. The DK-718 and DC-250 are available for an additional fee. This instrument is not field upgradeable.
EHC 09B
Hand-Held Digital Ultrasonic thickness gage including: Full Probe List, hold, alarm, Plastic Carrying Case, 2 Oz. bottle of couplant, 2 AA batteries, DKS-537 , 5 MHz, .375 " diameter Transducer with potted cable.
EHC 09
Hand-Held Digital Ultrasonic thickness gage including: Echo to Echo, hold, vibrate on alarm, gain, velocity mode, Plastic Carrying Case, 2 Oz. bottle of couplant, 2 AA batteries, DKS-537 , 5 MHz, .375 " diameter Transducer with potted cable
ECHO 9DL
Hand-Held Digital Ultrasonic thickness gage including: Datalogger with B-Scan, Echo to Echo, Plastic Carrying Case, 2 Oz. bottle of couplant, 2 AA batteries, DKS 537, 5 MHz, .375 " diameter Transducer with potted cable, protective pouch, USB cable, Data XL software
EHC 9 W
Hand-Held Digital Ultrasonic thickness gage with including: Live Waveform/A-Scan, Echo to Echo, Plastic Carrying Case, 2 Oz. bottle of couplant, 2 AA batteries, DKS 537 , 5 MHz x .375" diameter Transducer with potted cable.
EHC 9DL W
Hand-Held Digital Ultrasonic thickness gage including: Live Waveform/A-scan, Datalogger with B-Scan, Echo to Echo, Plastic Carrying Case, 2 Oz. bottle of couplant, 2 AA batteries, DKS 537, 5 MHz, .375 " diameter Transducer with potted cable, carrying pouch, and B-Scan, USB cable USB-09-6 and Data XL interface program to export saved readings to p.c.
The EHC-09, EHC-09DL, EHC-09-W and the ECH 09DL-W are available with color display screens,
Echo to Echo to ignore Coatings
Comes Standard on the EHC-09, EHC-09DL, EHC-09W and EHC-09DLCW
This option allows for the coating or paint thickness to be ignored. The coating thickness or paint does not make the substrate material any stronger. Without the ability to subtract the paint, the normal measurement would introduce an error of 2 to 2.5 times the thickness of the paint, which represents the sound speed difference from Paint to Steel.
B-Scan
Comes standard on the EHC-09DL and EHC-09DLCW
This option is only available combined with the Data logger option. Provides a non-encoded (time base) or a cross section (side view) of the part being inspected. The image to the right shows the side view of a step block. The image above shows the side view of a step block. The operator can scroll where the cursor line is after a B-scan is generated to get the thickness value as that point (.100") shown to the right.
Data logger
Comes standard with the EHC-09DLC and EHC-09DLCW
The EHC-09 Data logger stores up to 100,000 readings in it´s internal Data logger as linear, 2D, 3D or boiler in alpha numeric or 2600 waveforms (if gage is equipped with waveform option). Thickness values along with the i.d. information and all gage set up parameters are exported to Microsoft excel via the no-charged, included Data XL interface program provided with every Danatronics thickness gage. Our Data logger also interfaces with Ultrapipe. (Data logger: included with all DL gages, also available as an add on for all EHC-09 series).
Live Waveform (A-Scan)
Comes standard with the EHC-09CW and EHC-09DLCW
The live waveform (A-scan) is used to verify reading stability. With the live waveform the operator can adjust gain, range, rectification and 2 forms of blanking to set the gage to ignore unwanted noise or mode converted echoes.
