Adjustable Fillet Weld Gage Cat # 3

Use to Measure Fillet Weld. Weld Throat Thickness.

Available in Standard or Metric (specify when ordering)

7-Piece Fillet Weld Set Cat # 8

(Markings on One Side) English (Standard US) Markings

Use to Check Fillet Leg & Throat Size. English (Standard US) Range 1/8" to 1". Stainless Steel

7-Piece Fillet Weld Set Cat # 8a

(Markings on Both Sides) English (Standard US) Markings

Use to Check Fillet Leg & Throat Size. English (Standard US) Range 1/8" to 1". Stainless Steel

7-Piece Fillet Weld Set Metric Cat # 8b

(Markings on One Side) Metric Markings

Use to Check Fillet Leg & Throat Size. Metric Range 3mm to 25mm. Stainless Steel

7-Piece Fillet Weld Set Metric Cat # 8b Metric

(Markings on Both Sides) Metric Markings

Use to Check Fillet Leg & Throat Size. Metric Range 3mm to 25mm. Stainless Steel

Pocket Fillet Weld Gauge Cat # 10

Pocket Size – Measures 8 Size Fillets Use to Check Leg Length, Throat Size, Plus Allowable Convexity. All Increments Permanently Engraved. Each Welder can carry a set for Pre-Inspection, Handy Key chain holds the together.

Available in Standard or Metric (specify when ordering)

Mini Fillet Weld Keys Cat # 16

Use to Check Weld Leg Size, Throat Dimension, Weld dimension of Skewed Member 11 Different Sizes in Standard with Metric Equivalent Markings - 1/8" to 1". Kit comes in Pocket Pouch with Handy Key Chain.

8-Piece Fillet Weld Set Cat # 81

Use to Check Fillet Leg & Throat Size 1 1/8" to 2" in 1/8" increments. Stainless Steel. Can be Certified (Special Order)

Available in Standard or Metric (specify when ordering)

8-Piece Large Fillet Weld Set Cat # 82

Use to Check Fillet Leg & Throat Size 2 1/8" to 3" in 1/8" increments. Stainless Steel. Can be Certified (Special Order)

Available in Standard or Metric (specify when ordering)

Skew-T Fillet Weld Gauge w/ Calculator Cat # 9c

Use to Check Angle of Vertical Member, Weld Acute Side & Weld Obtuse Side

CALCULATOR     A handy compilation of mathematical relationships between leg length, throats, skew angles and inspection dimensions. A must for designers and inspectors. The perfect companion to the GAL Skew-T Fillet Weld Gauge, and included with your purchase.

Available in Standard or Metric (specify when ordering)

HI–LO Welding Gage Cat # 1

Measures internal alignment of pipe after fit-up / alignment before and after tracking, cuts radiographic rejects. Measures internal misalignment of pipe before and after tacking. Measurements read in Standard on one side and Metric on the opposite side. New Slim Design Is 30% Lighter

Economy Single Purpose Hi–Lo Welding Gage Cat # 2

Use to Measure Internal misalignment, Root Weld Space and more. Eliminates Rejects – Improves Productivity.

Available in Standard or Metric (specify when ordering)

Bridge Cam Gage Cat # 4

Use to Measuring Angle of Preparation 0° to 60°, Excess Weld Metal (capping size), Depth of Undercut, Depth of Pitting, Fillet Weld Throat Size, Fillet Weld Length, Misalignment (High-Low)

Measurements are possible in either inches or millimeters

Pocket Bridge Cam Gauge Cat # 4a

Use for Measuring Angle of Preparation 0° to 60° Excess Weld Metal (capping size) Depth of Undercut By 1/32, Depth of Pitting By 1/32, Fillet Weld Throat Size (1/64?"or .5 mm, Theoretical & Actual), Fillet Weld Leg Length, Misalignment (High-Low)

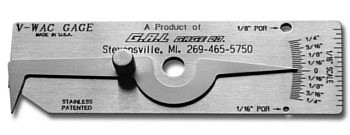

V–WAC Single Weld Gage Cat # 5

Use to Check for Undercuts / Pits, Porosity, Crowns. All Stainless Steel.

Available in Standard, Decimal or Metric versions (specify when ordering)

Automatic Weld Size Weld Gauge Cat # 6

For Accurate Calibration of Butt Fillet Type Welds. Use to Check Reinforcement, Check the Throat of Fillet Weld, Determine the Leg Size of the Fillet Weld

Available in Standard or Metric (specify when ordering)

WTPS Gage Cat # 7

Measure Undercut .010" Deep. Undercut shall be no more than .010" (.25mm) deep when the weld is transverse to the primary stress in the part that is undercut. All markings and dimensions are laser engraved for ease and clarity when reading. Gauge set comes with a precision ground calibration block as shown above; each block has been surface ground to a .0005 tolerance for accuracy.

Digital Welding Gage Cat # 18

Use to Measure Butt Weld Reinforcement, Measuring Throat Features include: LCD Display, IN/MM Switch, Slider Clamp Screw, Hold Switch, On / Off Switch, Data Output connector. Resolution: 0.01mm / 0.0005".

Automatically turns on by moving the main scale or by pressing ON/OFF key. Automatically turns off after 4 minutes, conserving battery power.

Mini Sub Socket Weld Gage Cat # 14

Use to Check Throat Dimensions, Leg Length. Checks All Pipe Schedule. All Stainless Steel
