AlphaDur II Mini UCI hardness tester

BAQ Mini alphaDur UCI Method Tester

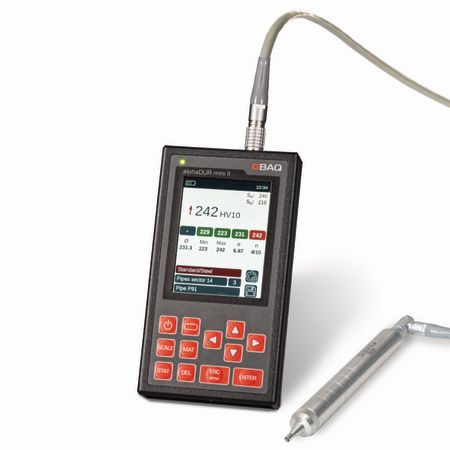

The alphaDUR mini II is the fourth generation of the alphaDUR series, which has been successful for many years. The operation of the alphaDUR II mini is very easy because all information is shown on the large LCD display. Hardness scale and material can quickly be changed by special keys. Measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 0.3 and 10 kg can be chosen depending on the application and the sample surface.

The AlphaDur II includes:

Basic device with built-in battery

UCI probe with cable

USB cable

Carrying case

BAQ certificate for UCI probes

USB flash drive with manuals (PDF)

Fast and easy hardness testing
Measuring method according to DIN 50159 and ASTM A1038
Clear user interface with function keys
Robust metal casing
Mobile hardness testing of many different materials
Versatile
High measuring accuracy
Simple and clear operation with menu navigation
Individual material calibration
Extensive storage and statistical functions
Hardness values in Vickers (HV), Rockwell (HRC), Brinell (HB) or tensile strength (revaluation according to DIN 50150)
USB-C interface for data transfer to PC and USB flash drive

Hardness Scale:	Vickers (HV), Brinell (HB), Rockwell (HRC, HRB, HRA, HRD, HRE, HRF), Super Rockwell (HR45N), Knoop (HK), tensile strength (N/mm²)
Test Load:	1, 5, 10 KG Force, depending on the UCI Probe
Display:	3.5“-TFT-LCD colour display, 640 x 480 pixel
Interface:	USB-C (charging and data transfer), CAN bus for probe connection, Bluetooth 5.0 BLE
Data Memory:	2 GB RAM, 8 GB eMMC-Flash-Memory (> 1.000.000 measurements)
Battery:	Built-in Li-ion Battery Built-in Lithium-Ion battery, 6800 mAh, approx. 10 h operating time Rechargeable by charging adapter or PC-USB
Dimensions:	154 x 84 x 23 mm (H x W x D), (6.06" x 3.3" x .905"
Weight:	Device - 430 grams

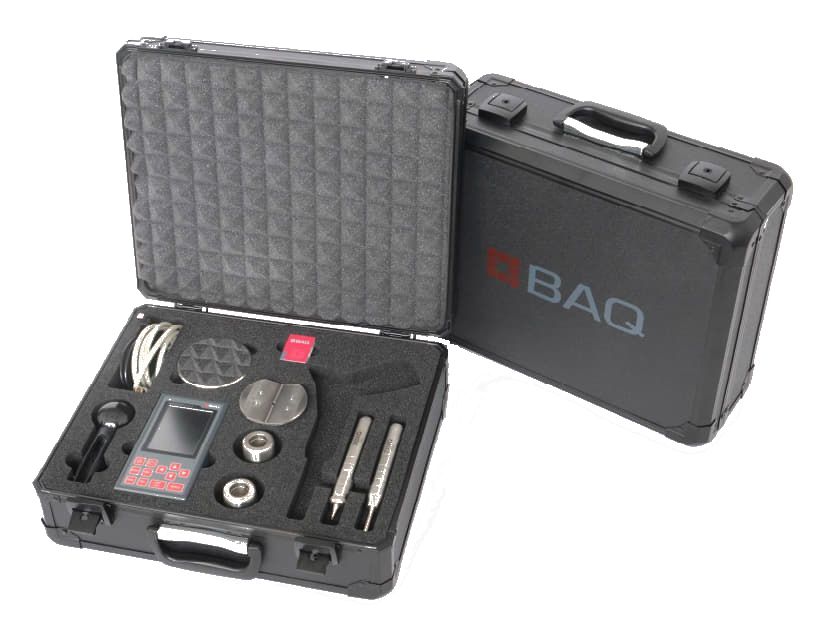

Basic UCI hardness tester with built-in battery
Probe (3N, 10N, 20N, 30N, 49N or 98N) with connection cable USB cable
Charging adapter
Carrying case
BAQ certificate for UCI probes
USB flash drive with manuals (PDF)

Application range:
Incoming goods inspection.
Hardness testing of metals in production.
Testing of machine parts, weld seams, coatings and hardened parts even at difficult to access locations and at any angle.
The minimum sample thickness starts at approx. 5 mm, depending on the dimension and the shape of the sample.

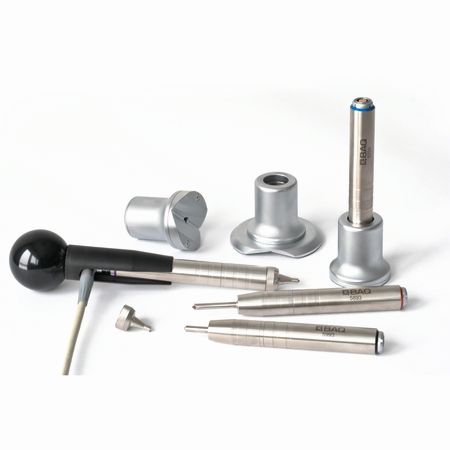

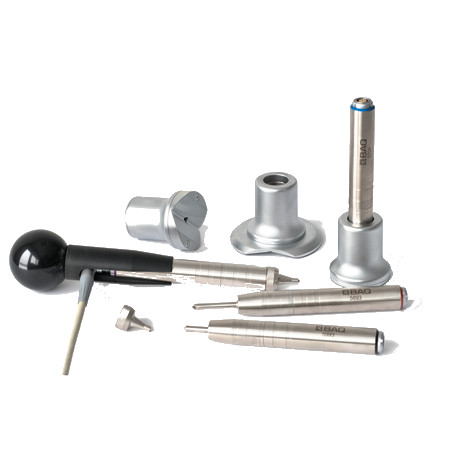

Carrying Bag
Probe Support for flat and curved surfaces
High precision stand
Windows data management software
Carrier bag
Probe handle
Portable Mini Printer
Special probe SL for measurements at location difficult to access
Hardness test blocks (⌀ 90 x 16 mm)

alphaDUR mini II Product Data Sheet
