EV6500 High-Intensity, Dual-Light LED UV Lamp
The EV6500 is a hand-held, portable LED UV lamp with built-in white light LEDs for non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.Designed with broad-beam profile for in-line and hand-held use, the EV6500 will decrease inspection time by improving indication visibility with 7,000 μW/cm2high intensity UV-A illumination and the widest coverage area in its class.
To improve NDT inspection flexibility, the EV6500 has easy-on visible light LEDs for visible flaw location, eliminating the need for a separate flashlight. The white light LEDs provide a large, concentrated flood of visible light of over 150 ft-candles.
To improve NDT inspection flexibility, the EV6500 has easy-on white light LEDs for visible flaw location, eliminating the need for a separate flashlight. The white light LEDs provide a large, concentrated flood of visible light of over 150 ft-candles.
Benefits
Minimizes time to inspect parts
- Speeds up inspection time with one of the widest, most even beams on the market
- Indications are clearly visible even at the edge of the 9 inch / 23 cm beam, thanks to the high intensity LEDs
Maximize range of inspections
- Use for virtually any fluorescent penetrant or mag particle inspection
- Inspect a wide range of components, including aerospace parts, without worry
Improves operator comfort
- 30% lighter than a mercury-vapor lamp, the EV6500 helps inspectors work more comfortably by reducing arm strain
- Keeps inspection booths from heating up by using cool-running LEDs
Improves visibility & versatility
- Eliminates the need for a separate flashlight for visible spot checking with built-in LED white light function
- See clearly without fumbling in the dark or having to turn on an overhead light with the 16 inch / 41 cm beam of bright white light
Increases real-world reliability
- Reduces on-the-job downtime with dependable, reinforced construction
- Fully sealed IP65 rated housing will stand up to the elements
Safer working conditions with LED technology
- Removes the possibility of operator burns through cool LED technology
- Eliminates hazardous mercury vapor waste disposal for safer working conditions

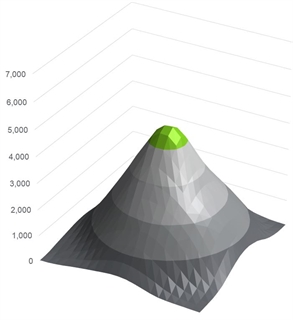

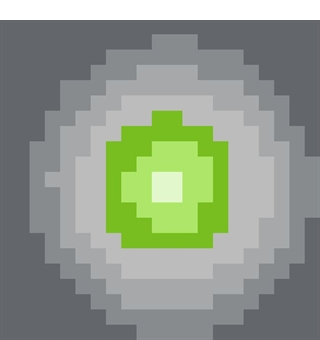

UV-A Beam Profile
Features
- 7,000 μW/cm2 high intensity UV-A illumination
- 10 in / 25 cm wide, uniform beam
- Built-in LED white light
- Single push-button operation for UV and white light
- Light weight 2.8 lbs / 1.3 kg.
- Rugged, durable design
- No internal fan
- Low energy consumption
- No hot-spots in the beam profile
- Improved operator and environmental safety
- Certified to ASTM / RRES / NADCAP
Ceiling Mounting Adapters The Ceiling Mount Assembly comes with hardware to permanently attach hand-held black lights, such as EV6500, EV-6500, ST-700 to the solid roof of an inspection area.
When it is important to bring the black light closer to the inspection area, you may purchase one of the extensions shown below.
Part Numbers:
- 623367: Black Light Ceiling Mount Assembly
- 622596: Modular Black Light 5.5 Extension
- 622597: Modular Black Light 7.5 Extension
Magnetic Bench Mounting Adapters
Magnetic bench mounting system for hand-held black light units such as EV-6500, EV-6500, ST-700
Includes mounting hardware for permanently affixing black lights to Magnaflux wet bench units. Once installed, black lights can be continuously adjusted to fit varying inspection needs.
When it is important to bring the black light closer to the inspection area, you may purchase one of the extensions shown below.
Part Numbers:
- 623365: Wet Bench Mounting System
- 622596: Modular Black Light 5.5 Extension
- 622597: Modular Black Light 7.5 Extension
