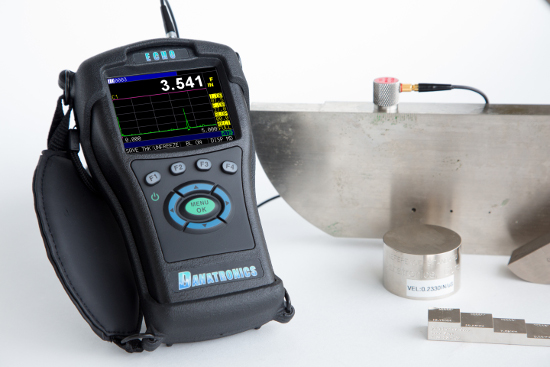

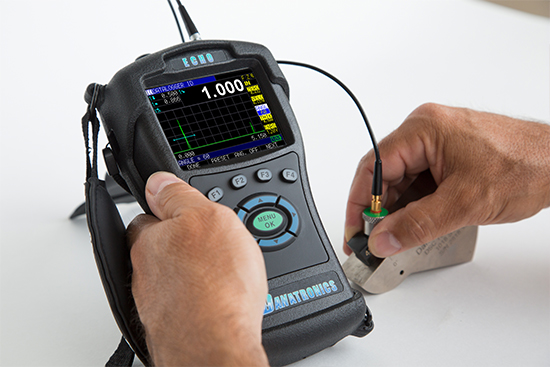

ECHO FD is our portable ultrasonic flaw detector in the same field-proven case as our popular ECHO series. Our ECHO FD represents a breakthrough in terms of cost, size and ease of use for your everyday flaw detector. ECHO FD can even toggle from a flaw detector, corrosion or precision thickness gage making it the smallest and most affordable unit in the world to offer such a vast application set.
Our new hand-held ultrasonic flaw detector is packed with many useful and practical features including:

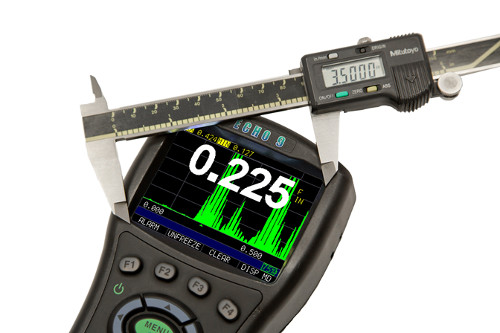

|Display:||3.5″ TFT, 320 x 240 Pixels (¼ VGA) Sunlight Readable Color Display with display update rate of 60 Hz. Under All Test Conditions.|
|Backlight:||Light Emitting Diode (LED) backlight. Includes Variable Light Intensity.|
|Package:||Designed for IP67 Rating, Custom, Splash-Proof, High Impact Plastic with Illuminating Rubber Keypad for Go/No-Go Testing.|
|Operating Temperature:||-4° to 122°F (-20° to 50°C)|
|Transducer Connectors:||Lemo ″00″|
|Bandwidth:||.5-30 Mhz (-3dB)|
|Pulser:||Tunable Square Wave (1-25 MHz), Spike|
|Mode:||Pulse-echo, Dual, Through Transmission|
|Measurement rate:||60 Hz|
|Pulser Voltage:||30, 60, 90 120V|
|Range:||.400″ Full Scale to 23 Inches for Steel Velocity|
|Zoom:||Zooms Gate 1 Width to Minimum Range Capability|
|Delay:||0-23″ (23″ minus the range)|
|Zero Offset:||0-5000 µsec.|
|Velocity:||.025 in/µsec-.6 and Metric Equivalent.|
|Weight:||1.15 lbs with Internal Rechargeable Batteries.|
|Battery life:||13 Hours|
|Battery Type:||3.7V Li Ion and Alkaline Tray Option.|
|Charger:||5V, 2 amp output, 100-240 VAC, 50-60 Hz Input|
|Rubber Boot:||Custom Boot to Protect the Unit with Chest Harnesses, Padded Strap with Built In Stand.|
|Gain:||0-90db in .1db Increments|
|Linearity:||Per ASTM E317-15 (1% on Vertical Axis, .5% on Horizontal Axis.|
|USB 2.0:||2-Way Communication, Acts as Input for Battery Re-Charge.|
|Alarm:||Dynamic change of Color and Vibrate on Alarm for Echo in Gate, Echo above DAC Positive or Negative Gate and Minimum Depth Alarm|
|Data logger:||2Gb Standard, Expandable to 32GB of Removable Micro Sd Card Memory: File Types Linear, 2D 2D with Custom Point, 3D 3D with Custom Point, Boiler with and without Waveform Storage Options.32 Character File Name and 20 Character Longer I.D. Strings.|
|Stored Setups:||Storage and Recall of 2700 Calibration and Set-Up Files.|
|Data XL:||Interface program to send and receive files to and from PC. Displays thickness with ID in Microsoft Excel.|
|Memory:||Internal and Micro Sd Card, 2 GB Standard Upgradeable to 32GB|
|Peak Hold:||Holds Peak of all Echoes including for setting up DAC in Outline Waveform, Hold Curve of Echo Envelope with Live Echo below which is ideal for Flaw Sizing (-6db Drop Technique (API 5UE)), RF Peak Hold as well. Peak On, Peak Hold and Peak Off.|
|Freeze:||Freezes for Data Storage and Waveform Viewing Analysis.|
|Waveform:||Filled or Outline|
|Gates:||2 Independent Gates, Adjustable Gate Start, Width, Level and Alarm Type (Positive, Negative, Minimum Depth). Can be set to Peak or Edge Detection for each Gate.|
|Zoom:||Zooms Gate Width 10 Times to Minimum Range Capability.|
|Auto Cal:||2 Point Calibration, Cal Zero and Cal Velocity of Thin and Thick.|
|Display Special Functions:||5 Display Modes for varying A-Scan Size plus A and B Scan Simultaneously.|
|Rectification:||RF, Full Wave, Half +, Half –, RF|
|Units:||Inches, MM or µsec.|
|Languages:||English, French, German, Spanish, Italian, Russian, Czech, Finnish, Chinese, Japanese, Portuguese, German, Slovak, Swedish, and Hungarian.|
|Angle Beam:||Display all Three Leg Components, which Leg you are in Visually, Angular Distance, Surface Distance and Depth Accounting for Leg Correction. Auto Beam Index Peak Pitch where Audible Beep Indicates when the Peak of the Signal is Reached, X-Value to Correct for Beam Index Point of Wedge.|
|Angle:||0-90 Degrees in 1 Degree Increments including 0,30, 45, 60, 70 and 90 as Pre-Set Choices.|
|Reject:||0-85‰ FSH, Completely Linear with Vertical Indication Bar.|
|Measurement Types:||Single, Dual, Through Transmission, Angle Beam, Delay Lines, Contact, Immersion, Echo to Echo, Dry Couple|
|Standard Inclusions:||Echo FX including 2 GB SD card, Li Ion battery, Battery Charger, Data XL Interface Program, USB Cable, DAC, AWS Software, API 5U, 2 gates, Echo to Echo, B-Scan, 2oz bottle of Couplant, Rubber Boot with Padded Wrist Strap and Stand, Operating Manual, Transport Case.|
|Software Options:||Corrosion Module, Precision Module, Pipe Curvature Correction|
|Hardware options:||Rubber Boot with Chest Harness and Bail, Magnetic Wheel Encoder, Alkaline Battery Tray, Spare Battery, Foot Switch, Test Blocks, Cables, Probes, Couplant, Power Bank, and Magnetic Pipe Stand (1/4, 20 aftermarket)|

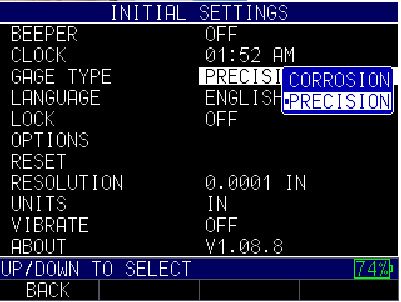

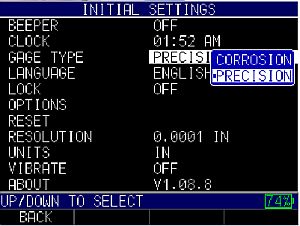

All ECHO FD Software Options are field upgradeable via the keypad. Danatronics offers a unique and convenient way to upgrade your gages. The upgrades are done directly from your gage and do not require the use of a computer. The advantages of the Echo FD being field upgradeable are:
Included with ECHO 9FD and ECHO 8FD
When corrosion software is added to the ECHO FD it becomes both a corrosion thickness gage as well as a flaw detector.
The corrosion portion of the software for ECHO 9FD is equivalent to the ECHO 9DLW
Included with ECHO 7FD and ECHO 8FD
When precision software is added to the ECHO FD it becomes both a precision thickness gage as well as a flaw detector.
The precision portion of the software for ECHO 7FD is equivalent to the ECHO 7DLW.
Pipe curvature correction
Corrects for sound path calculations based on angle and pipe material and diameter.
Waveform template overlay
Conveniently allows operator to compare a sample or “good” waveform to a live waveform.
Floating Gate - Adjusts to -6 or -12 db for consistent edge depth thickness readings
The following accessories are available for the ECHO FD series

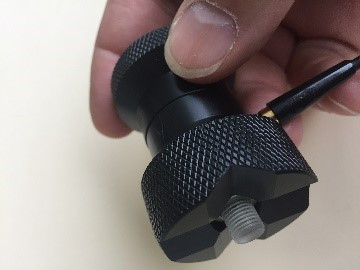

Spring Loaded Holder
The spring loaded holder (SPH-718) is the ideal fixture to be used on small diameter applications such as tubing to prevent the probe from rocking. The probe can be rotated as well and the fixture has v-notches to assist in probe alignment.

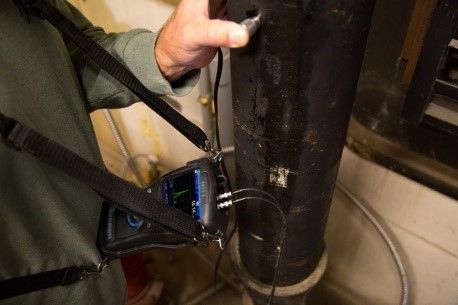

Custom 4 point chest harness with comfortable adjustment of straps for shoulder and waste line. Comes with metal detents
Magnetic Pipe Holder
Available magnetic pipe holder that screws onto the ¼, 20 connector on the ECHO 9. This is ideal to stabilizing the ECHO 9 on a larger pipe or any magnetic surface and can even be used up side down.
Also with the ¼, 20 connector on the back of the Echo FD will connect to various camera accessories, such as a gorilla pod for holding the unit in a particular place

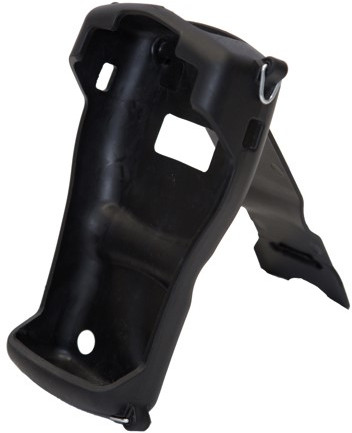

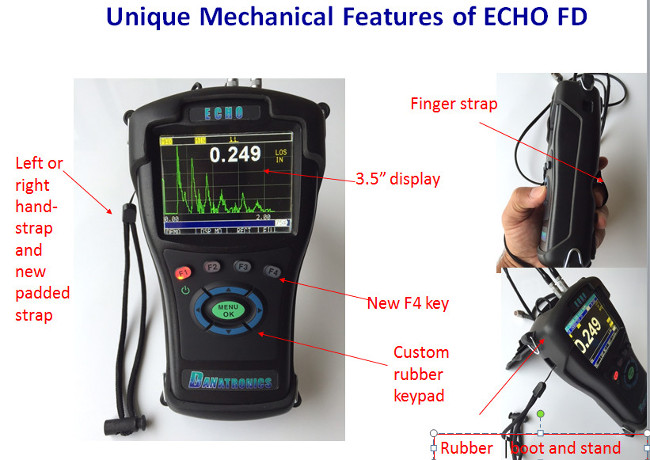

Custom protective rubber booth with built in bail, 4 point chest harness and unique 2 finger hold strap.
Standard 3.7 V Li Ion internally rechargeable battery comes standard with Echo FD or a optional alkaline tray for 3 AA batteries is available
ECHO Transport Case
The EHC-09 Transport Case is shown with common inclusions.
(Spare batteries and 5 step test block sold separately).

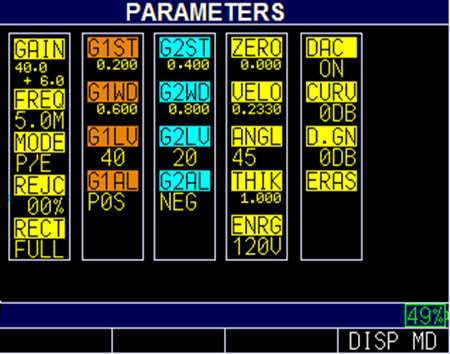

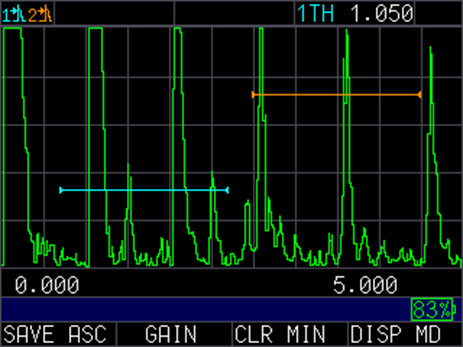

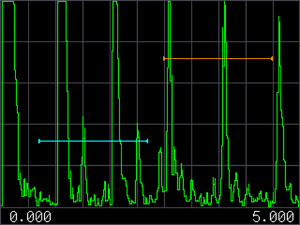

ECHO FD Display Features

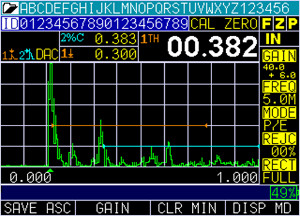

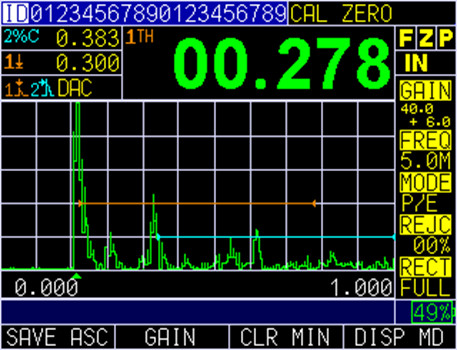

Display #2, most inclusive:
