Protective Face Transducers (PF Style)

PF-0006-GP .5 MHz x .75" Diameter General Purpose Protective Face BNC
PF-0008-GP .5 MHz x .1" Diameter General Purpose Protective Face BNC

PF-0104-GP 1 MHz x .5" Diameter General Purpose Protective Face BNC
PF-0106-GP 1 MHz x .75" Diameter General Purpose Protective Face BNC
PF-0108-GP 1 MHz 1" Diameter General Purpose Protective Face BNC

PF-0204-GP 2.25 MHz x .5" Diameter General Purpose Protective Face BNC
PF-0206-GP 2.25 MHz x .75" Diameter General Purpose Protective Face BNC
PF-0208-GP 2.25 MHz 1" Diameter General Purpose Protective Face BNC
PF-0209-GP 2.25 MHz 1.125" Diameter General Purpose Protective Face BNC

PF-0304-GP 3.5 MHz x .5" Diameter General Purpose Protective Face BNC
PF-0306-GP 3.5 MHz x .75" Diameter General Purpose Protective Face BNC
PF-0308-GP 3.5 MHz 1" Diameter General Purpose Protective Face BNC

PF-0504-GP 5 MHz x .5" Diameter General Purpose Protective Face BNC
PF-0506-GP 5 MHz .75" Diameter General Purpose Protective Face BNC
PF-0508-GP 5 MHz 1" Diameter General Purpose Protective Face BNC

PM-12-04 .5" Diameter Protective Membranes Dozen
PM-12-06 .75" Diameter Protective Membranes Dozen
PM-12-08 1" Diameter Protective Membranes Dozen
PM-12-09 1.125" Diameter Protective Membranes Dozen

PC-04 .5" Diameter Protective Wear Cap
PC-06 .75" Diameter Protective Wear Cap
PC-08 1" Diameter Protective Wear Cap
PC-09 1.125" Diameter Protective Wear Cap

PC-12-04 .5" Diameter Protective Wear Cap Dozen
PC-12-06 .75" Diameter Protective Wear Cap Dozen
PC-12-08 1" Diameter Protective Wear Cap Dozen
PC-12-09 1.125" Diameter Protective Wear Cap Dozen

PD-04 1" long x .5" Diameter Protective High Temperature Delay Technitherm
PD-06 .75" Diameter Protective High Temperature Delay
PD-08 1" Diameter Protective High Temperature Delay
PD-09 1.125" Diameter Protective High Temperature Delay

PDR-04 .5" Diameter Protective Delay Ring
PDR-06 .75" Diameter Protective Delay Ring
PDR-08 1" Diameter Protective Delay Ring
PDR-09 1.125" Diameter Protective Delay Ring

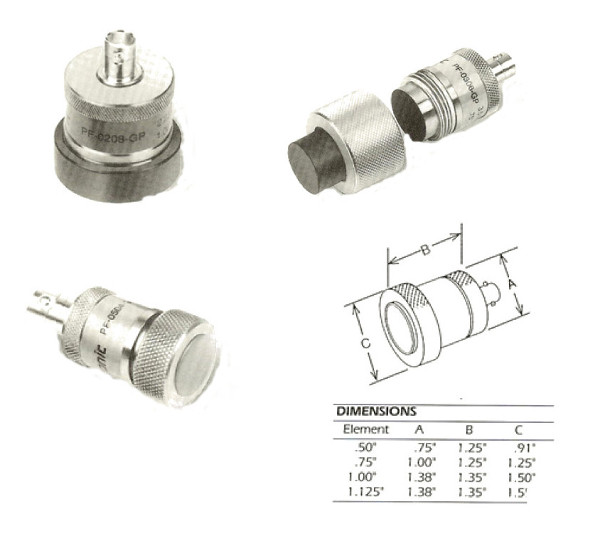

Technisonic Research PF, Protective Face Combination Straight (Longitudinal) Beam Transducers Catalog Sheet
