    ALL GAGES COME COMPLETE with

  • precision plastic shim(s)
  • protective rubber holster
  • wrist strap
  • 3 AAA alkaline batteries
  • instructions
  • protective lens shield
  • convenient carrying case
  • Long Form Certificate of Calibration traceable to NIST or PTB
  • USB cable
  • PosiSoft Software
  • two (2) year warranty

    Simple

  • Fast measurement speed—60+ readings per minute. Enhanced FAST mode— 90+ readings per minute for quick inspection.
  • Ready to measure—no adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • Flashing display—ideal in a noisy environment
  • RESET feature instantly restores factory settings

    Versatile

  • SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
  • Multiple calibration adjustment options including zero, 1-point, 2-point, and ISO 19840 correction factors
  • Selectable display languages
  • NEW Auto rotating display with Flip Lock
  • Extended cables available (up to 75 m/250 ft) for remote measuring

    Durable

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Wear-resistant probe tip
  • Shock-absorbing protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

    Accurate

  • Certificate of Calibration showing traceability to NIST or PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for precision applications
  • Conforms to national and international standards including ISO and ASTM

    Powerful

  • Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • NEW Screen Capture—save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Includes PosiSoft suite of software for viewing and reporting data (see far right)

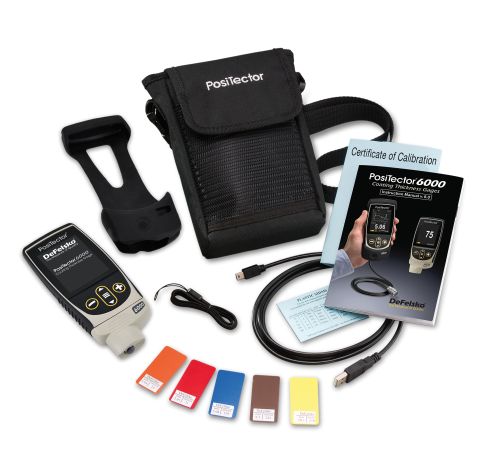

Positector 6000 Kit

Standard Models

    Includes ALL features as shown on left plus...
  • NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

    Includes ALL features as shown on left plus...
  • NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • Live graphing of measurement data
  • NEW Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
  • 3 Scan Modes—increase measurement speed to 180+ readings per minute
  • Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
  • Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90:10 modes help users comply with standards by prompting for max/min specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

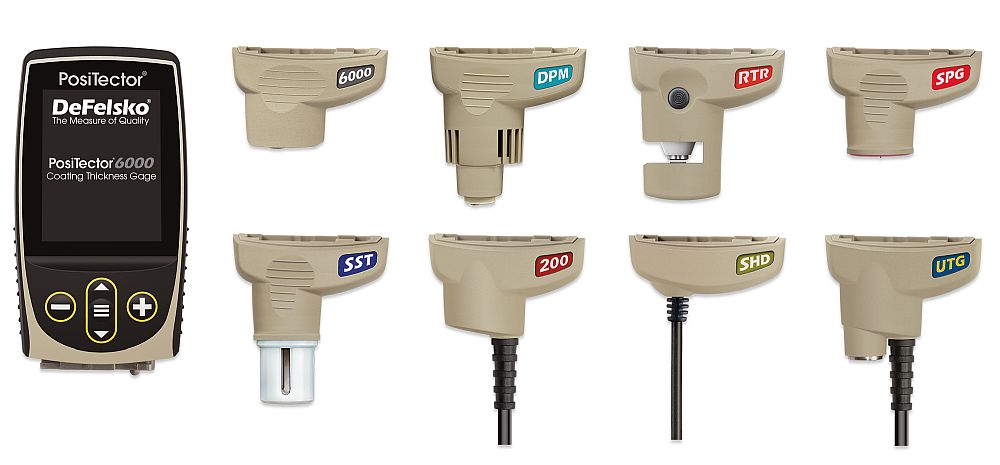

PosiTector 6000 Body with Various Interchangeable Probes

Various Interchangeable Probes with a PosiTector 6000 Body
