GD, GRD, MRD Delay Line Style Transducers

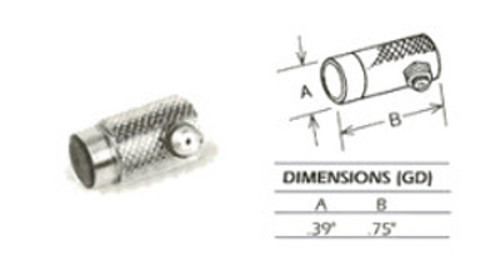

GD Permanent Delay (.25) Diameter
GD-0502-HR 5 MHz x .25" Diameter (High Resolution) Permanent Delay

GD-1002-HR 10 MHz x .25" Diameter (High Resolution) Permanent Delay

GD-1502-HR 15 MHz x .25" Diameter (High Resolution) Permanent Delay

GD-2002-HR 20 MHz x .25" Diameter (High Resolution) Permanent Delay

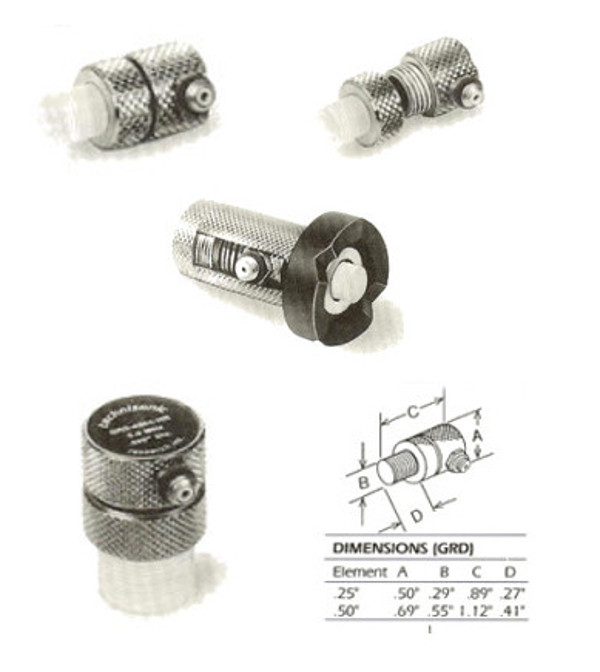

GRD Standard Removable Delay (.25 and .50 Diameter)
GRD-0202-HR 2.25 MHz x .25" Diameter (High Resolution) Removable Delay Line Peek Material Microdot
GRD-0204-HR 2.25 MHz x .5" Diameter (High Resolution) Removable Delay Line Microdot

GRD-0302-HR 3.5 MHz x .25" Diameter (High Resolution) Removable Delay Line Microdot
GRD-0304-HR 3.5 MHz x .5" Diameter (High Resolution) Removable Delay Line Microdot

GRD-0502-HR 5 MHz x .25" Diameter (High Resolution) Removable Delay Line Microdot
GRD-0504-HR 5 MHz x .5" Diameter (High Resolution) Removable Delay Line Microdot

GRD-1002-HR 10 MHz .25" Diameter (High Resolution) Removable Delay Line Microdot
GRD-1004-GP 10 MHz .5" Diameter (General Purpose) Removable Delay Line Microdot

GRD-1502-HR 15 MHz .25" Diameter (High Resolution) Removable Delay Line Microdot

GRD-2002-HR 20 MHz .25" Diameter (High Resolution) Removable Delay Line Microdot

GRD-2502-HR 25 MHz .25" Diameter (High Resolution) Removable Delay Line Microdot

GRD-.25-D10 .25" Diameter Replaceable GRD Delay Package of 10
GRD-.50-D10 .5" Diameter Replaceable GRD Delay Package of 10

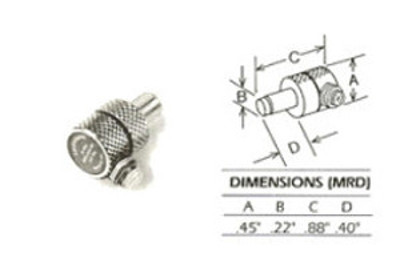

MRD Miniature Removable Delay (.125 Diameter)
MRD-1501-HR 15 MHz x .125" Diameter (High Resolution) .5" long delay Removable Delay Line Microdot

MRD-2001-HR 20 MHz x .125" Diameter (High Resolution) .5" long delay Removable Delay Line Microdot

MRD-2501-HR 25 MHz x .125" Diameter (High Resolution) .5" long delay Removable Delay Line Microdot

MRD-D10 .125 Diameter Replaceable MRD Delay Package of 10



Technisonic Research Delay Line Styles Transducer Catalog Sheet
