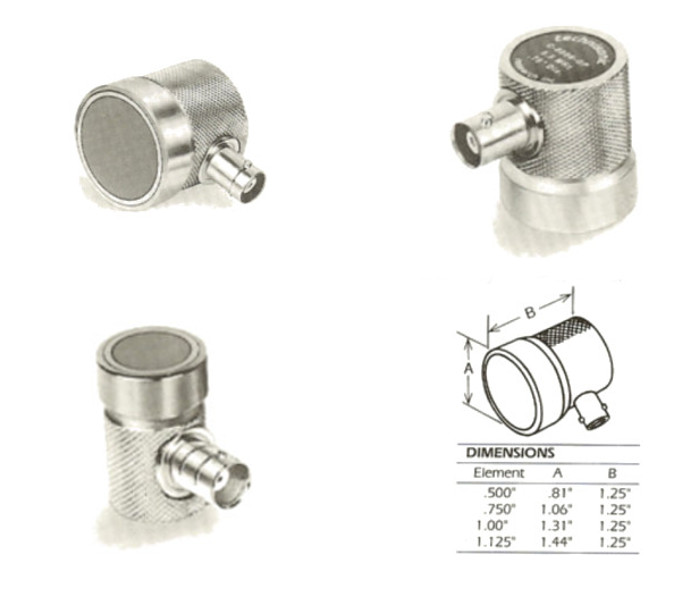

Contact Style (Ruby Red Face)



C-0006-GP 0.5 MHz, x .75" Diameter (General Purpose) Contact BNC connector
C-0008-GP 0.5 MHz x 1" Diameter (General Purpose) Contact BNC connector

C-0104-GP 1 MHz x .50" Diameter (General Purpose) Top Contact Top BNC connector
C-0106-GP 1 MHz x .75" Diameter (General Purpose) Contact BNC connector
C-0108-GP 1 MHz x 1" Diameter (General Purpose) Contact BNC connector

C-0204-GP 2.25 MHz x .5" Diameter (General Purpose) Contact BNC connector
C-0206-GP 2.25 MHz x .75" Diameter (General Purpose) Contact BNC connector
C-0208-GP 2.25 MHz x 1" Diameter (General Purpose) Contact BNC connector
C-0209-GP 2.25 MHz 1.125" Diameter (General Purpose) Contact BNC connector

C-0304-GP 3.5 MHz x .5" Diameter (General Purpose) Contact BNC connector
C-0306-GP 3.5 MHz x .75" Diameter (General Purpose) Contact BNC connector
C-0308-GP 3.5 MHz x 1" Diameter (General Purpose) Contact BNC connector

C-0504-GP 5 MHz x .5" Diameter (General Purpose) Contact BNC connector
C-0506-GP 5 MHz x .75" Diameter (General Purpose) Contact BNC connector
C-0508-GP 5 MHz x 1" Diameter (General Purpose) Contact BNC connector

C-0104-HR 1 MHz x .5" Diameter (High Resolution) Contact BNC connector

C-0204-HR 2.25 MHz x .5" Diameter (High Resolution) Contact BNC connector
C-0206-HR 2.25 MHz x .75" Diameter (High Resolution) Contact BNC connector
C-0208-HR 2.25 MHz x 1" Diameter (High Resolution) Contact BNC connector

C-0306-HR 3.5 MHz x .75" Diameter (High Resolution) Contact BNC connector

C-0504-HR 5 MHz x .5" Diameter (High Resolution) Contact BNC connector
C-0506-HR 5 MHz x .75" Diameter (High Resolution) Contact BNC connector
C-0508-HR 5 MHz x 1" Diameter (High Resolution) Contact BNC connector

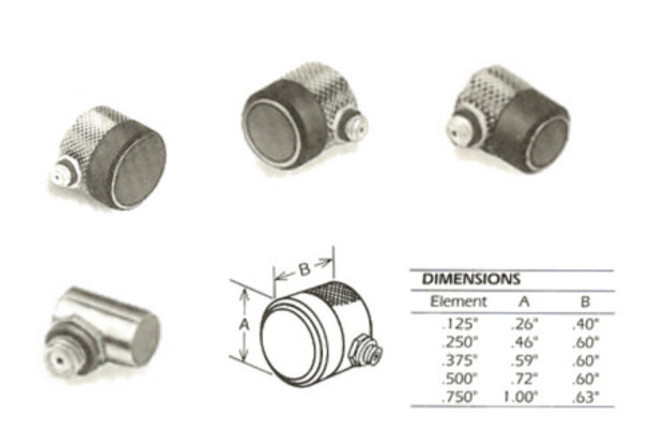

Contact Fingertip Style



CF-0104-GP 1 MHz x .5" Diameter (General Purpose) Fingertip Contact Microdot connector

CF-0202-GP 2.25 MHz x .25" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-0203-GP 2.25 MHz x .375" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-0204-GP 2.25 MHz x .5" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-0206-GP 2.25 MHz x .75" Diameter (General Purpose) Fingertip Contact Microdot connector

CF-0302-GP 3.5 MHz x .25" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-0303-GP 3.5 MHz x .375" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-0304-GP 3.5 MHz x .5" Diameter (General Purpose) Fingertip Contact Microdot connector

CF-0502-GP 5 MHz x .25" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-0503-GP 5 MHz x .375" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-0504-GP 5 MHz x .5" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-0506-GP 5 MHz x .75" Diameter (General Purpose) Fingertip Contact Microdot connector

CF-1002-GP 10 MHz x .25" Diameter (General Purpose) Fingertip Contact Microdot connector
CF-1004-GP 10 MHz x .5" Diameter (General Purpose) Fingertip Contact Microdot connector

CF-0202-HR 2.25 MHz x .25" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-0203-HR 2.25 MHz x .375" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-0204-HR 2.25 MHz x .5" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-0206-HR 2.25 MHz x .75" Diameter (High Resolution) Fingertip Contact Microdot connector

CF-0302-HR 3.5 MHz x .25" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-0303-HR 3.5 MHz x .375" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-0304-HR 3.5 MHz x .5" Diameter (High Resolution) Fingertip Contact Microdot connector

CF-0501-HR 5 MHz x .125" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-0502-HR 5 MHz x .25" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-0503-HR 5 MHz x .375" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-0504-HR 5 MHz x .5" Diameter (High Resolution) Fingertip Contact Microdot connector

CF-1001-HR 10 MHz x .125" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-1002-HR 10 MHz x .25" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-1003-HR 10 MHz x .375" Diameter (High Resolution) Fingertip Contact Microdot connector
CF-1004-HR 10 MHz x .5" Diameter (High Resolution) Fingertip Contact Microdot connector

CF-1501-HR 15 MHz x .125" Diameter (High Resolution) Fingertip Contact Microdot connector

CF-2001-HR 20 MHz x .125" Diameter (High Resolution) Fingertip Contact Microdot connector




Technisonic Research, Contact and Fingertip Single Element Straight Beam (Longitudinal) Transducers Catalog Sheet
