Parker Research PL 8, PL 10 Coils

PL 8, PL 10 Coils

Parker portable magnetizing coils are designed for magnetic particle inspection of ferrous metal parts. The new coils allow for the use of either dry powder or wet fluorescent inspection media and may be used for demagnetizing as well.

The coils are molded in a tough black polyurethane material and come equipped with a foot switch or a hand switch and 10' yellow neoprene power cord. The sealed electrical connection box has a 2" x 5" flat base allowing the coil to stand in a vertical position.

The coils are designed for a 50% duty cycle, and are equipped with thermal overload protection. Both the PL-10 and the PL-8 operate from a standard 115 VAC, 60 Hz power source. The PL10S and PL8S operate from a 230VAC, 50-60 Hz power source

  • The PL-10 and PL-10PDC models have 9 7/8" inside diameter
  • The PL-8 and PL-8PDC models have 8" inside diameter

8 inch and 10 inch Coils by Parker Research second

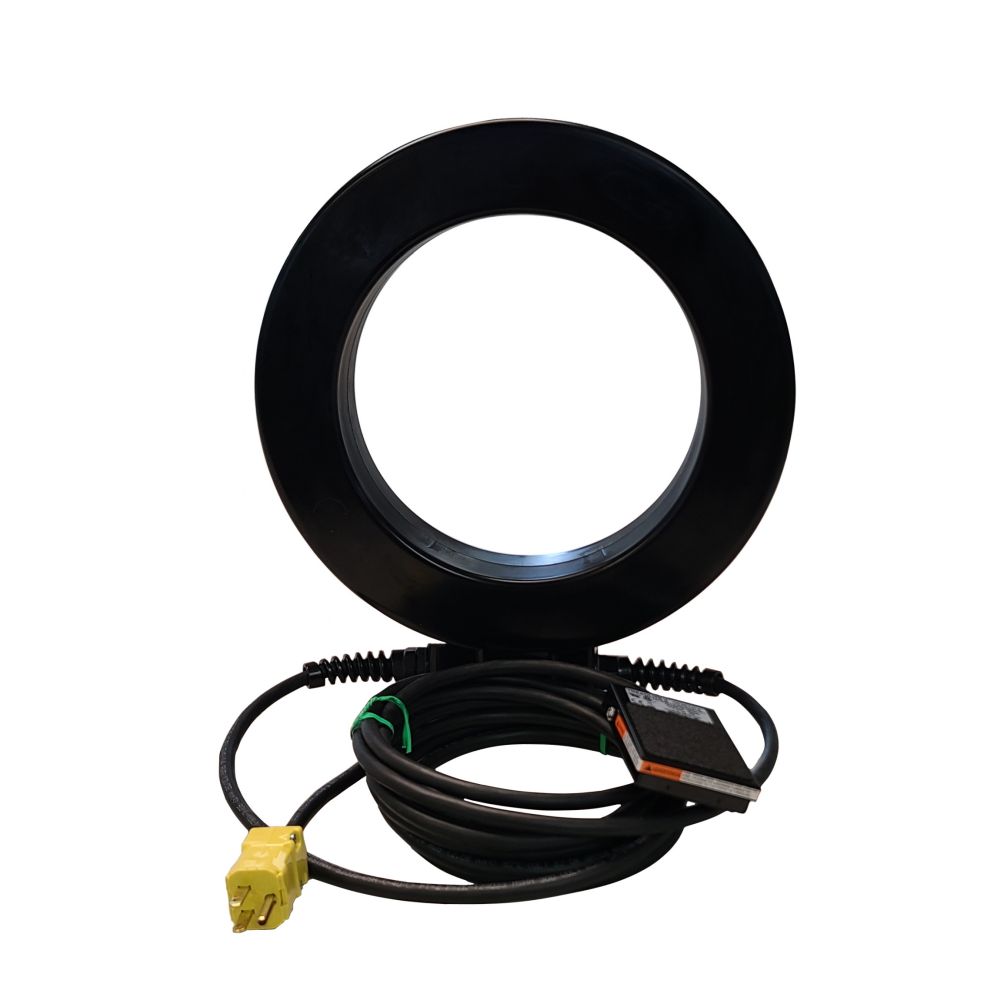

The above coil has the Standard Foot Switches

Parker Research Coil with Hand Switch

The above coil has the Optional Hand Switch

(Product Operating Instructions) Date: March 2014
