Y-2 Kit AC Electromagnetic Yoke

Magnaflux Y-2 Kit AC Magnetic Particle Yoke

The Y-2 is an AC electromagnetic yoke, ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the Y-2 is designed for the rugged demands of field inspection. Featuring a field swappable cord and isolated trigger switch; the Y-2 is easily serviceable because a severed cord should not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including #1 Gray and #8A Red magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

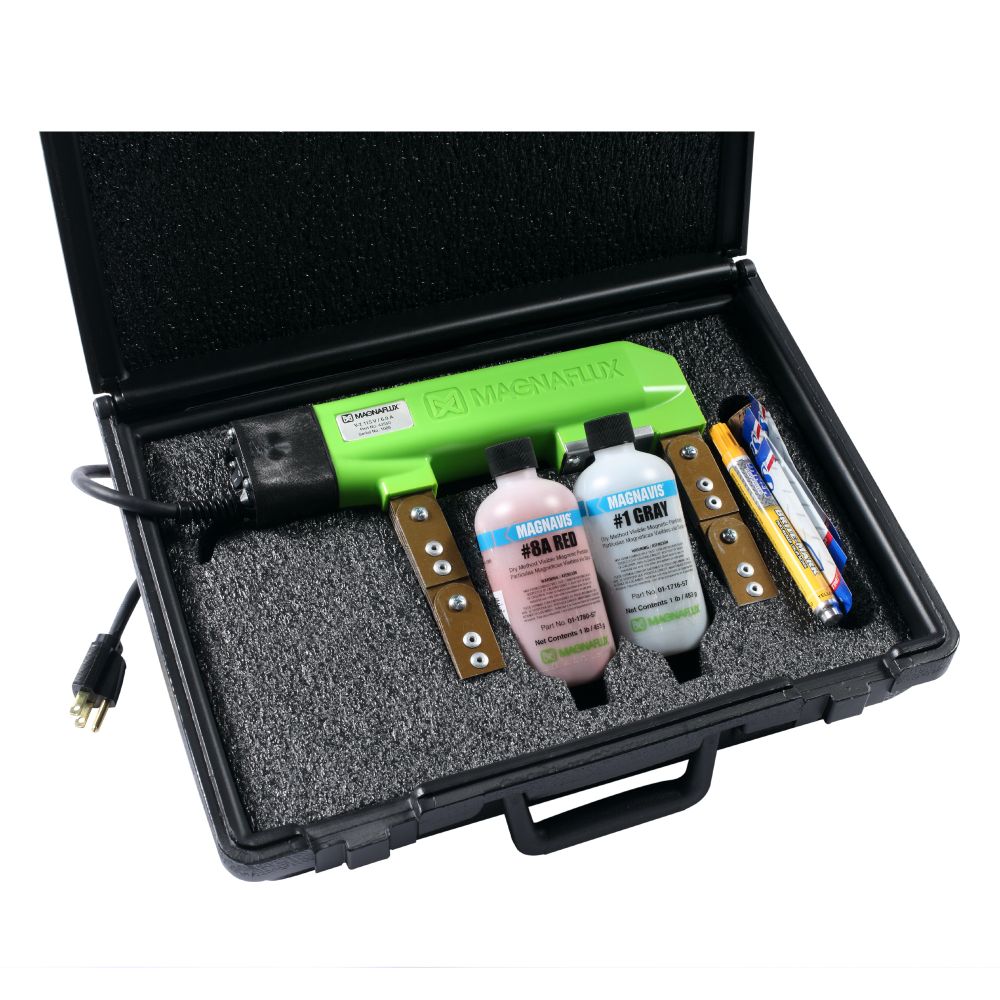

The Y-2 Kit includes:

  • Gray Magnetic Powder
  • Red Magnetic Powder
  • Yellow Piant Marker
  • Cleaning Clost

** All Y-2's come in a plastic carry case

Benefits

Increase inspector productivity and reduce physical fatigue

  • Less arm strain, wrist fatigue and physical stress help operators get more done due to the lightweight and ergonomic design.
  • Easily position the yoke in any direction with lightweight, heavy-duty and powerful electronics components.

Keep tools in service with a design that's built to last

  • Cords and triggers can be easily replaced, so work doesn’t stop and tools aren’t scrapped due to accidental damage.
  • Prevent dust and dangerous water damage with an IP54 o-ring sealed housing.



Features






Ideal Applications: Demanding environments, Field testing, In-service inspections, Spot inspections, Weld inspection

Defect Examples: Fatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Welding slag

Standards: ASME BPVC, ASTM E1444, ASTM E709
