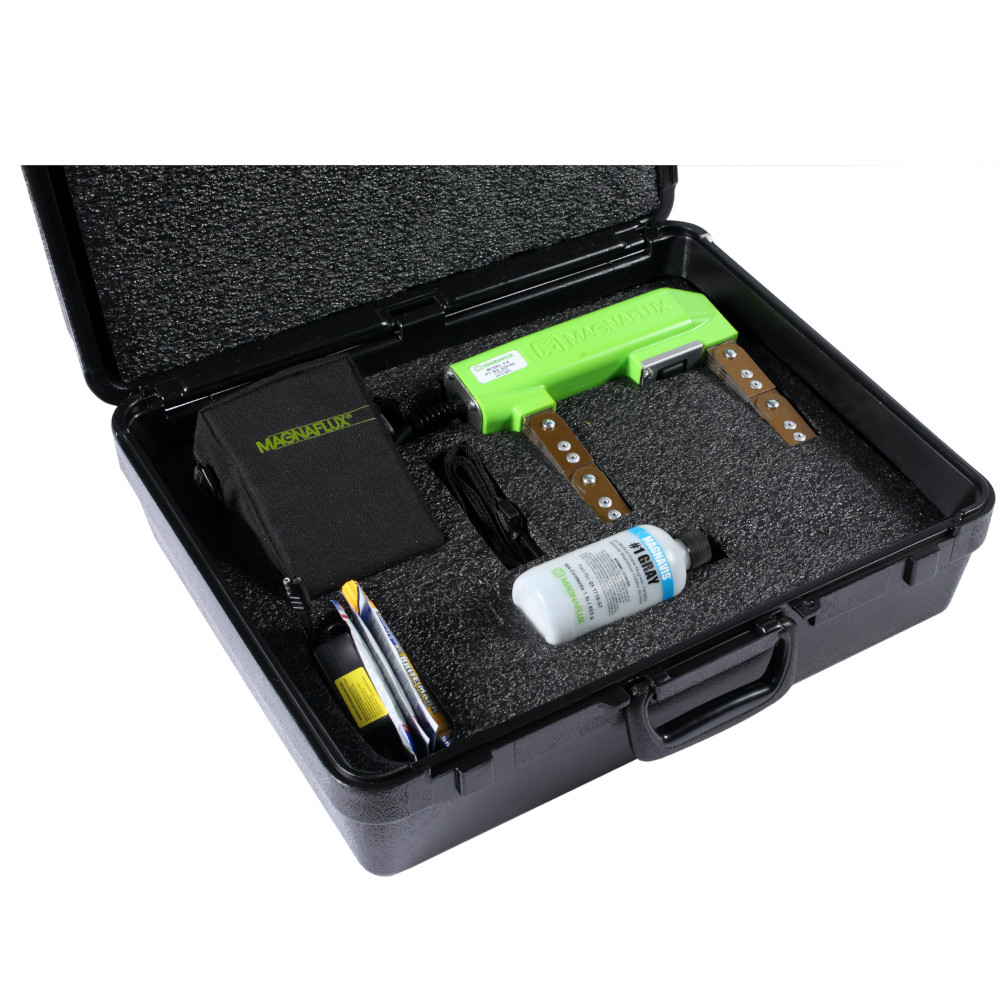

Magnavis® Y-8 Battery Operated Magnetic Yoke Kit by Magnaflux®

Magnavis® Y-8 Battery Operated Magnetic Yoke Kit

The Magnavis® Y- 8 Battery Operated Magnetic Yoke brings battery portability to magnetic particle yoke testing.

Core Benefits:

  • 100‰ portable for field inspections
  • Batter pack with convenient shoulder strap
  • Articulating, double-jointed legs contour to part?s shape for superior contact
  • Solid state controls located in the yoke's housing for maximum safety and reliability
  • The Y-8 Yoke kit consists of the following items:

  • Y-1 Yoke 115v - 60 Hz/1pH, or 220V/50-60Hz.
  • 1 lb. #1 Gray Magnetic Powder
  • 1 lb. #8A Red Magnetic Powder
  • Powder Spray Bulb
  • Paint Marker
  • SCRUBS™ Hand Cleaner
  • Portable Carrying Case and Instructions
  • Specifications

    Weight 115V - 7.5 lbs
    Leg Span 0" - 12" (0 - 30cm)

    Yoke Current Draw 4 Amps @ 6 Volts

    Battery Charger Current Draw 0.2 Amps @ 115V or 230V

    Cord Length 12 ft. (3.66m)
    Warranty 1 year

    Battery Specifications
    • 6 Volt, 13 Amp Hour
    • 4.8 lbs
    • 4.25" x 2.8" x 5.55"
    • Output Voltage Charge 6.84V or 7.35V
    • Battery Operating Temp. Range: -40°C to 60°C (-40°F to 140°F)


    Y-8 Yoke Kit Part Numbers:

  • 611710: Y-8 Yoke Kit 115V
  • 611710-01: Y-8 Yoke Kit 230V
  • Y-8 Battery Operated Magnetic Yoke Kit Catalog Page_2015
