ACS-A1270-EMAT-Thickness-Gauge

Range of the measurable thickness values is from .024" to 2.0" (0.6 to > 50 mm).
Gauge is user selectable in inches or metric values
Quick access to control functions.
Parameters of the selected transducer can be adjusted using an integrated calibration sample.
Automatic determination of ultrasonic velocity on the object of known thickness.
Pre-installed database of transverse velocities of the basic materials suitable for adding more velocity values.

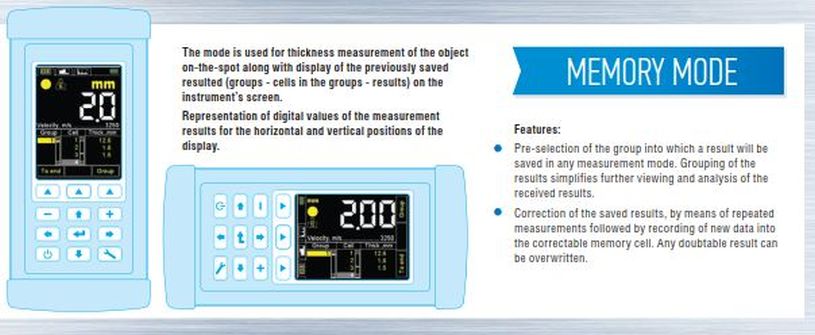

Non–volatile memory can store 50,000 digital measurement results and 4,000 A-Scans.
Large daylight readable color TFT display.
Changeability of image orientation when the instrument is rotated by 90 degrees (Portrait to Landscape).
Instrument backlighting control.
Built-in lithium rechargeable battery.
Continuous work time is 9 hours with battery indicator.
Sound, light and vibro – indication.
Indication discreteness of thickness measurement is .00039" of .0039" (0.01 or 0.1 mm).
Data transfer to PC via USB.
Software to receive data from the instrument and save them into the PC.

Range of measurable thickness values: with the S3850 5.0A0D8ES transducer	.024" to 2" (0.8 – to 50 mm)

Operational frequencies range	2.5 – 5.0 MHz

Main accuracy of X thickness measurement, mm, no more than:	±(0.01X+0.1)

Velocity range	1 000 – 9 999 m/s

Size and type of the display	3.5" TFT, antiglare, color

Number of recordable results	50,000 Thickness measurements, 4,000 A-Scans

Nominal accumulator voltage	13.2 V

Period of continuous operation of the instrument powered by the battery, no less than	9 hours.

Instrument-PC communication interface	USB

Overall dimensions of the electronic unit	7.5" x 3.5" x 1.6" (190 x 87 x 40 mm)

Weight of the electronic unit	2 Lbs (900 g)

Operating temperature range	−22 to 122° F (−30 to +50°C)

Thickness measurement of tubular and plate products without the use of coupling liquid and without pretreatment of the surfaces (removing typical paint coatings or grinding surface corrosion is’t needed).

An innovative technical solution frees the design of the EMA transducer from the strong permanent magnets typically used in other EMA test equipment. They are replaced with pulsed electromagnets. This negates the effect of strong adhesion of the transducer to ferromagnetic materials. This makes scanning feasible since the adhesive forces are not present.

Two types of transverse wave EMA transducers are used (radial or linear polarization).

Thickness measurement of metal objects through corrosion or paint coatings of up to 60 mils in thickness can be achieved. The instrument A-scan screen displays a thickness value of the metal object without measuring the coating if the coating thickness is < 60 mils and thickness value of the object being inspected is under .75”

The instrument can be used with traditional permanent magnet transducers S7392 and S7394 by connecting a special adapter to the instrument. These also allow for high temperature inspection.

Ultrasonic thickness measurement of the material can be performed without contacting the material surface by utilizing fixtures to mount the transducer.

The small aperture of the EMA transducer (.315") allows for the inspection of the small-diameter pipes (down to .75” OD)

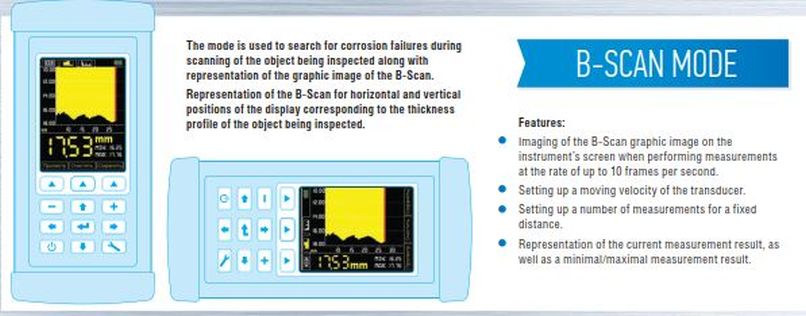

B-Scan mode allows the operator to visually display a cross section of the material under examination.

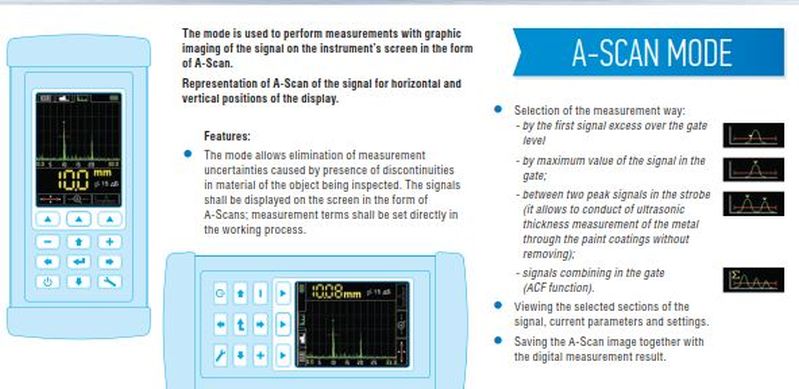

EMAT Thickness gauge showing A-Scan Screen

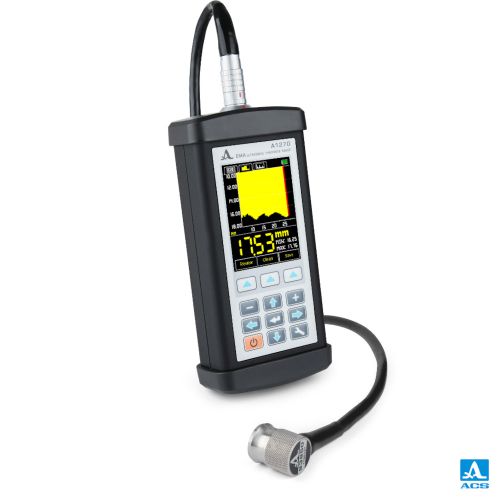

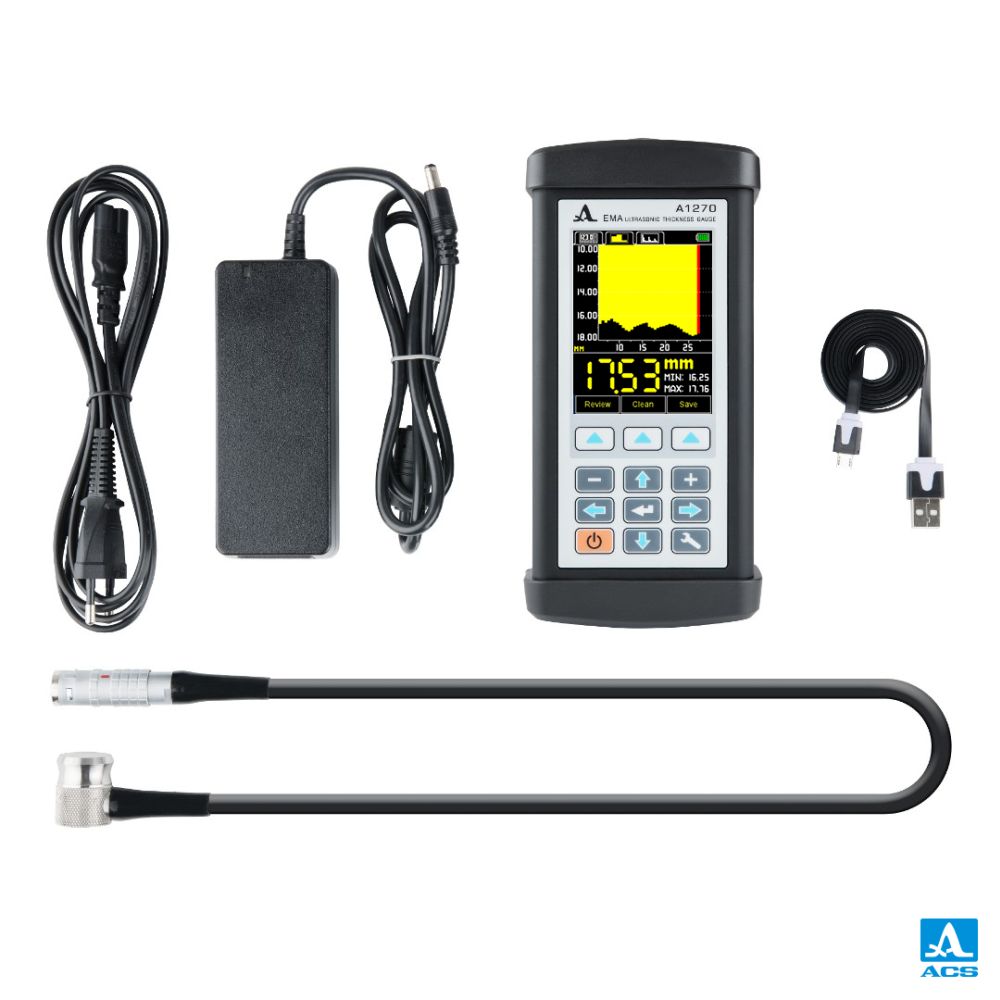

A1270–EMAT Thickness gauge electronic unit
S3850 5.0A0D8ES EMA transducer with a built–in cable
Net adaptor with cable 220V–15V
USB A – Micro B cable
Hard Shell Carry Case

Additionally available items:

S7394 2.5A0R10X10ES EMA transducer
S7392 3.0A0D10ES EMA transducer
Connector 2K–LEMO 00 for EMA transducers (S73 series)
Movable capsule for EMA transducers (S73 series)

ACS A1270 EMAT Thickness Gauge Literature
ACS 1270 EMAT Thickness Gauge Operations Manual

Electromagnetic Acoustic Thickness Gauge, no couplant needed
