Sherwin High Temperature Visible Penetrants

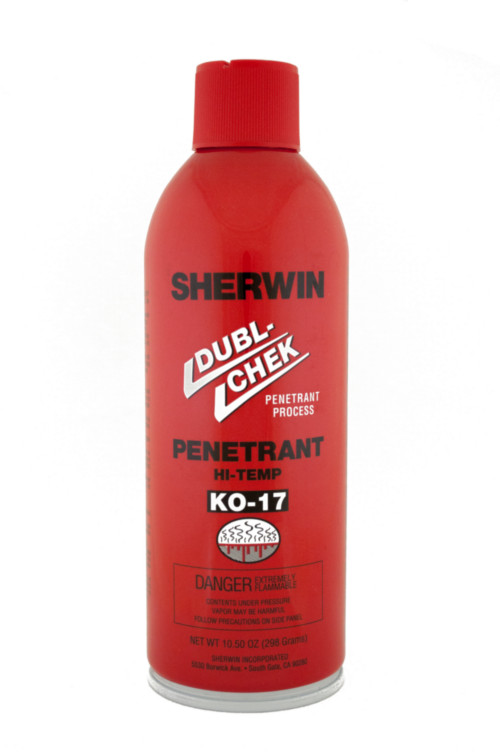

KO-17 Hi-Temperature Penetrant

KO-17 hi-temp penetrant is a visible dye penetrant used to find flaws on surfaces at elevated temperatures, up to 350°F (176.7°C). KO-17 saves time for weldment inspection allowing the inspection to take place at pre-heated temperatures. Because KO-17 works at high temperatures, the heat drives contaminants from flaws and heat-expanded flaws trap more penetrant, giving stronger indications.

Complies with low sulfur and low halogen requirements.

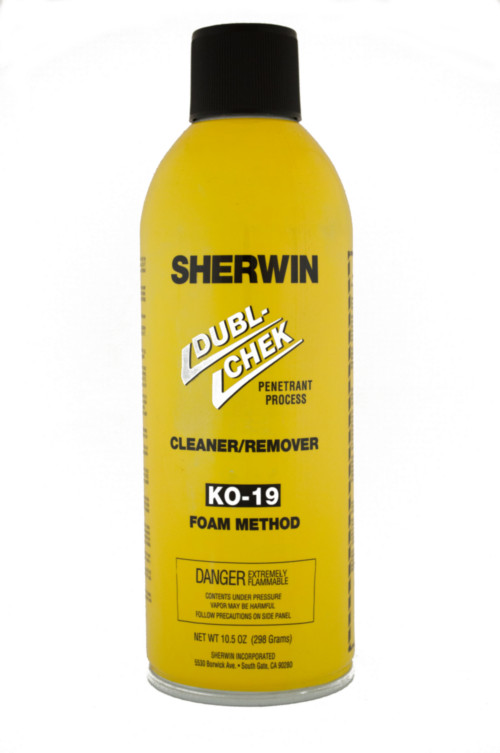

KO-19 Hi-Temperature Cleaner

KO-19 hi-temp remover used to remove excess penetrant from the surface of a part at elevated temperatures; up to 350°F (176.7°C). KO-19 is the remover step of a three part system used to remove excess penetrant from part surfaces (KO-17 hi-temp penetrant and D-350 hi-temp developer) are the other materials of the hi-temp system.

Complies with low sulfur and low halogen requirements.

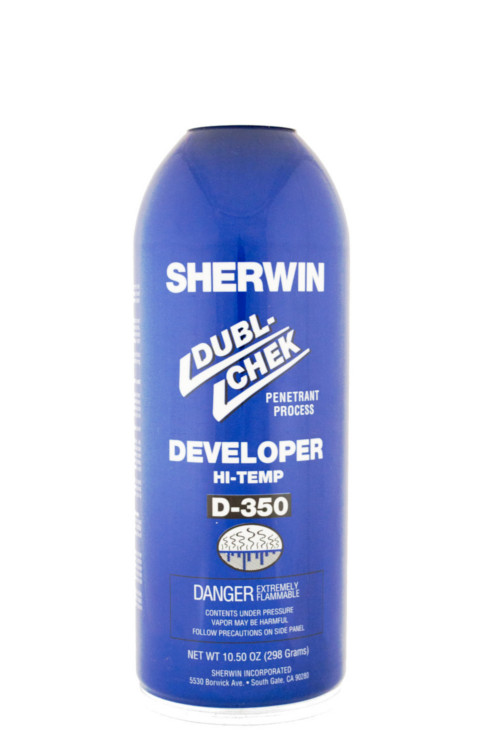

D-350 Hi-Temperature Penetrant

D-350 is a hi-temp developer used to enhance penetrant indications on parts at elevated temperatures, temperatures up to 3500F (176.70C). D-350 is the developer step in a three part high temperature system (KO-17 hi-temp penetrant and a KO-19 hi-temp remover are the other materials of the hi-temp system).

Complies with low sulfur and low halogen requirements.
