5" (127mm)(L) x 3" (76.2 mm)(W) x 1.25" (31.75 mm)(H)

8 OZ (.23 kg)

0.020 - 20 inches (.50 mm - 508 mm) in steel, depending on material, temperature and transducer selection

.0200 - 0.7362 in/µS (0.508 - 18.699 mm/µS)

-4° F to 122° F (-20° C to 50° C) High temperature transducers available for material temperatures from -5° F to 950° F (-20° C to 510° C)

Up to 50 hours (20 hours with backlight on)

8 -14 hours (depends on operating conditions)

2 "AA" Alkaline

128 X 64 Graphics LCD monochrome, sunlight readable

170 X 220 pixels, high resolution TFT display, sunlight readable

multi language of English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian

Loss of signal (LOS), min, max, large reading while displaying min at the same time, velocity, zero, calibration, units, freeze, unfreeze, % battery life remaining, gain - low, std, high, echo to echo symbol

.001" (.01 mm), .01" (.1 mm)

Via pick list from a menu

Auto at power up with listed numeric value. Ideal for correcting delay line wear/curvature and for transducer acoustic drift at elevated temperatures

IP54 Rated, Custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing

0.5-20 MHz (-3dB)

English / Metric / Microseconds

Low, Standard and High for varying test conditions (for gages without a waveform) or 1 dB steps from 20-90 dB or Automatic Gain Control (AGC) for gages with a waveform (A-Scan)

Simultaneously displays minimum or maximum and actual thickness value at 20 measurements per second

Displays the difference from the actual thickness measurement in absolute or percentage of a user entered reference value

Freezes display (ideal for high temperature applications)

Holds display to retain last thickness reading

Minimum / Maximum depth, vibrates, beeps and display flashes as well as keypad illumination

F1 = Red, F2 = Yellow and F3 = Green for easy, go / no-go testing

User selectable lefty or righty display changes via keypad

Light Emitting Diode (LED), On / Off or Auto On based on valid readings or last key press

Auto, user programmable time out (1-31 minutes), after no reading / key press or never shut off

Custom molded pouch with belt clip and wrist strap for either lefty or righty operators (optional, standard with DLW and DL).

Hard Plastic with high density molded foam cut out for gage and most accessories

Ultrasonic thickness gage, DKS-537, 5.0 MHz x 0.375 inch diameter potted cable transducer, operational manual, Data XL interface program, couplant, and transport case. See chart below for standard inclusions for each gage

Limited 2 year warranty on parts and labor for gage only under normal use

A wide variety of dual transducers from 1-10 mhz, high temperature duals, delay lines and pencil probes

Echo to Echo to ignore Coatings

Comes Standard on the EHC-09, EHC-09DL, EHC-09W

This option allows for the coating or paint thickness to be ignored. The coating thickness or paint does not make the substrate material any stronger. Without the ability to subtract the paint, the normal measurement would introduce an error of 2 to 2.5 times the thickness of the paint, which represents the sound speed difference from Paint to Steel.

B-Scan

Standard on the EHC-09DL

This option is only available combined with the Data logger option. Provides a non-encoded (time base) or a cross section (side view) of the part being inspected. The image to the right shows the side view of a step block. The image above shows the side view of a step block. The operator can scroll where the cursor line is after a B-scan is generated to get the thickness value as that point (.100") shown to the right.

Data logger

Standard with the EHC-09DLW

The EHC-09 Data logger stores up to 100,000 readings in it´s internal Data logger as linear, 2D, 3D or boiler in alpha numeric or 2600 waveforms (if gage is equipped with waveform option). Thickness values along with the i.d. information and all gage set up parameters are exported to Microsoft excel via the no-charged, included Data XL interface program provided with every Danatronics thickness gage. Our Data logger also interfaces with Ultrapipe. (Data logger: included with all DL gages, also available as an add on for all EHC-09 series).

Live Waveform (A-Scan)

Comes standard with the EHC-09W and EHC-09DLW

The live waveform (A-scan) is used to verify reading stability. With the live waveform the operator can adjust gain, range, rectification and 2 forms of blanking to set the gage to ignore unwanted noise or mode converted echoes.

EZ Scan 4 - Magnetic Wheel Encoder

Danatronics EZ Scan 4 encoder is a 1 axis encoder that keeps track of the transducer movement as it relates to the B-scan image. The EHC-09 must contain the Data logger Software for the B-scan to appear. This feature requires a hardware change to allow for the lemo encoder jack on the top of the gage.

Spring Loaded Transducer Holder

The spring loaded holder (SPH-718) is the ideal fixture to be used on small diameter applications such as tubing to prevent the probe from "rocking". Shown above is the SPH-718 with the DK718 transducer inside. The probe can be rotated as well and the fixture has v-notches to assist in probe alignment.for DK718 and DK718EE Transducers

Protective Pouch

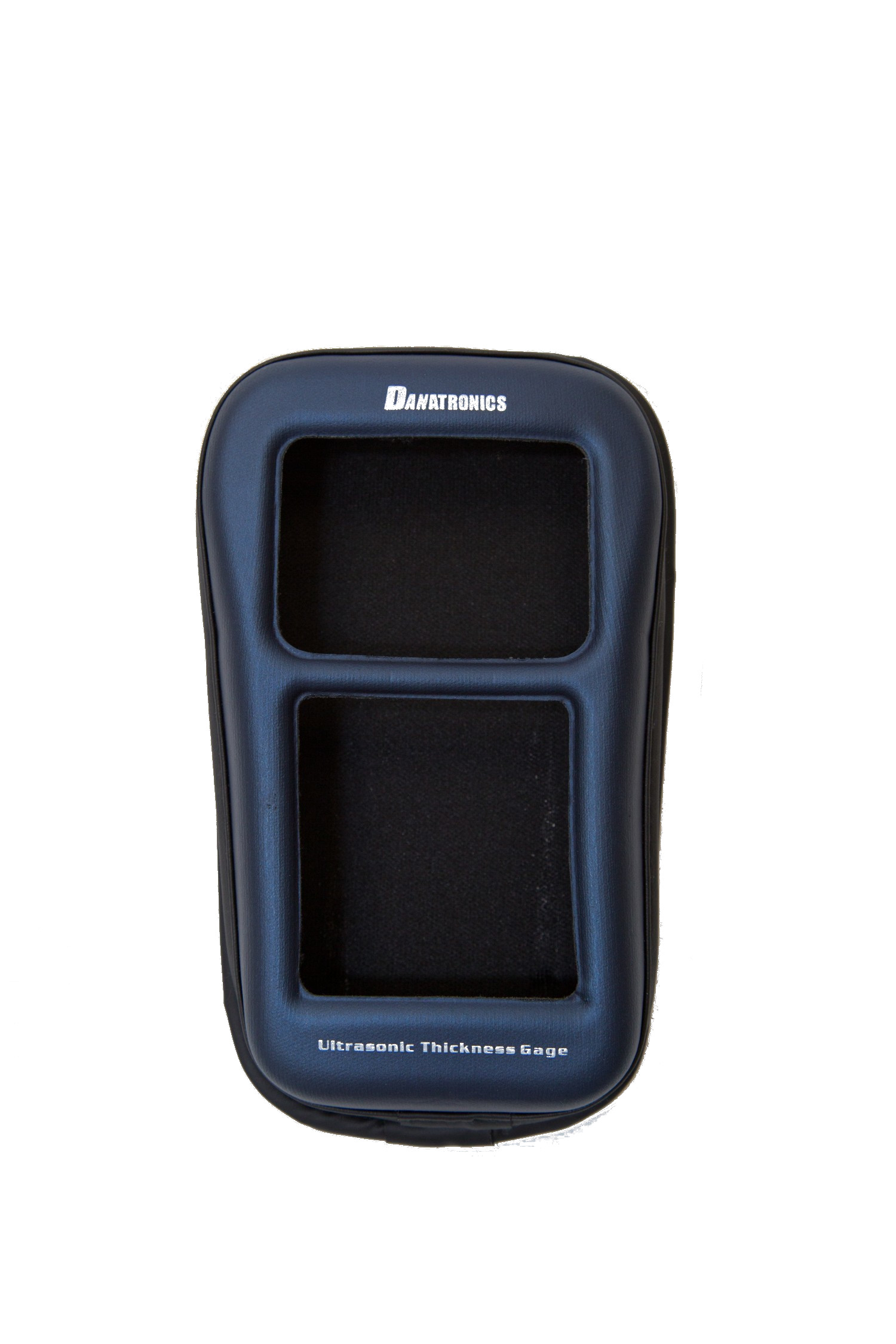

Custom protective pouch Part Number PP-09 for the EHC-09 Series

EHC-09 Transducers

Danatronics offers a wide variety of dual transducers from .5-10 Mhz , high temperature duals and delay lines including pencil probes (12 Mhz.) for special applications. Consult Stroud Systems for the proper use and recommendation for your application.

For complete list including specifications please see this transducer chart

High Temperature Transducer

The DHT-537 high temperature dual (up to 950F° intermittent use) shown with optional Bell Housing and available armored Dual Lemo to Microdot 6´ cable with molded plug (DLM-09ACMP). (shown with armor jacketed cable.)

Spring Loaded Transducer Holder

Available for DK718 and DK718EE
Danatronics Spring Loaded Holder has dual v-notches for small diameter pipes and tubes to prevent probe "rocking"
