Yoke and Power Pack Inspection Tools and Accessories

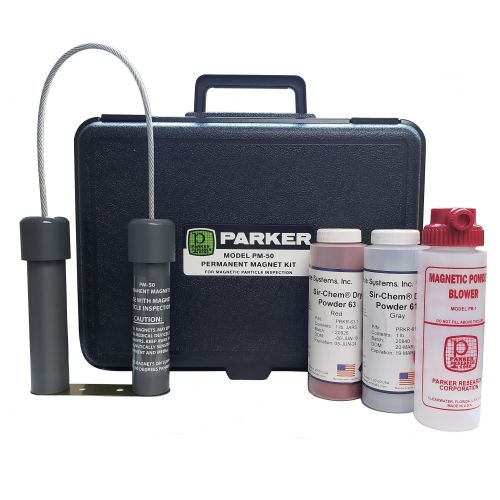

PM-50 Permanent Magnetic Yoke Set (Kit "A" or PM 50)
for magnetic particle inspection applications per specifications.
Includes: PM-50 Permanent Magnetic Yoke Set
Plastic carrying case
PB-1 Powder Applicator
1 lb. Red Dry Magnetic Inspection Powder
1 lb. Gray Dry Magnetic Inspection Powder
Yoke can be purchased separately
for magnetic particle inspection applications per specifications.
Includes:

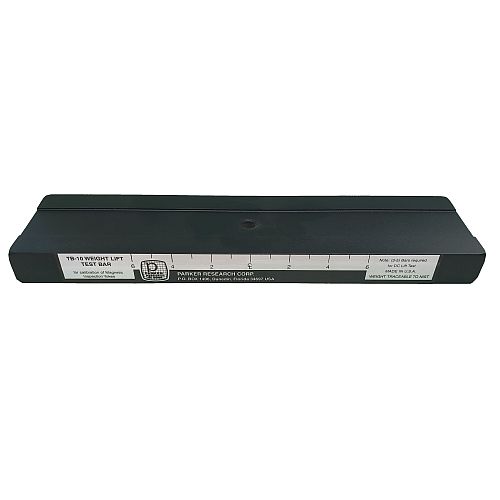

Magnetic Weight Lift Test Bars, 10 Lb Bar
Provides for the calibration and certification of Magnetic Particle Inspection Yokes. Bar weight is stamped on each bar and is traceable to NIST.
Provides for the calibration and certification of Magnetic Particle Inspection Yokes. Bar weight is stamped on each bar and is traceable to NIST.

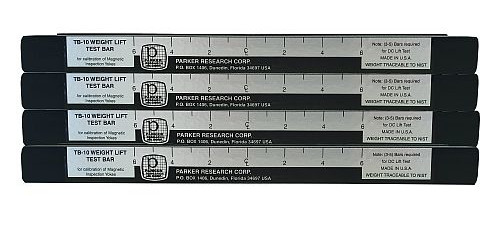

Magnetic Weight Lift Test Bar Set of 4
Set of 4 10 Lb Lift Bars provides for the calibration and certification of Magnetic Particle Inspection Yokes (Bolt is supplied to bolt all 4 together to perform a 40 Lb lift test). Bar weight is stamped on each bar and is traceable to NIST.
Set of 4 10 Lb Lift Bars provides for the calibration and certification of Magnetic Particle Inspection Yokes (Bolt is supplied to bolt all 4 together to perform a 40 Lb lift test). Bar weight is stamped on each bar and is traceable to NIST.

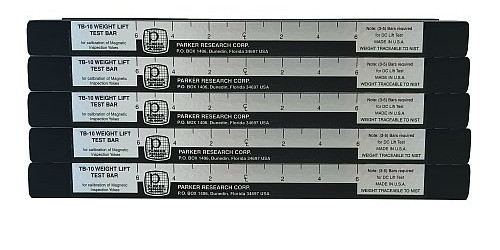

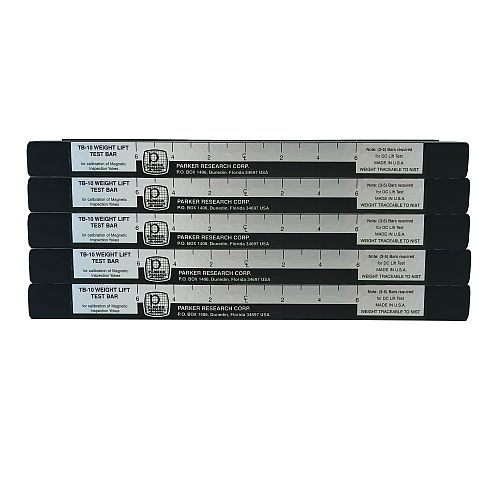

Magnetic Weight Lift Test Bar Set of 5
Set of 5 10 Lb Lift Bars provides for the calibration and certification of Magnetic Particle Inspection Yokes (Bolt is supplied to bolt all 5 together to perform a 50 Lb lift test). Bar weight is stamped on each bar and is traceable to NIST.

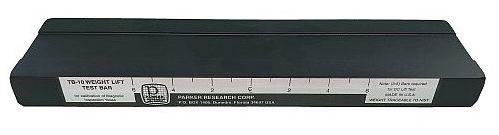

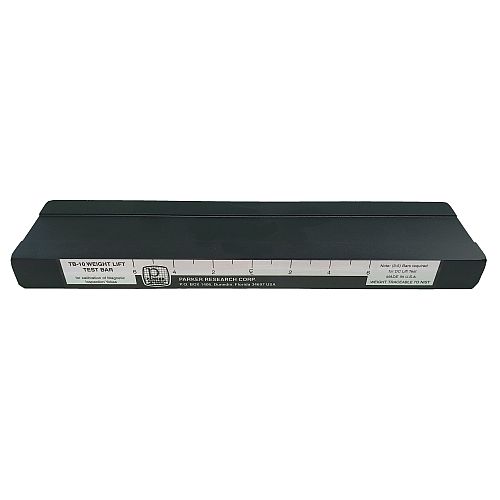

TB 10SP Special Magnetic Weight Lift Test Bar with Artificial Defects
The TB-10SP Magnetic Weight Lift / Defect Test Bar provides for the 10 lb AC weight lift calibration of Magnetic Particle Inspection Yokes. In addition the reverse side of the TB-10SP bar contains artificial defects as indicated above. Demonstration of actual defect indications is very useful for visual and operational performance purposes.

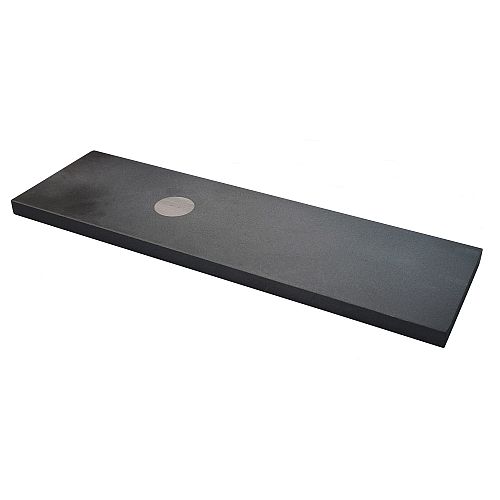

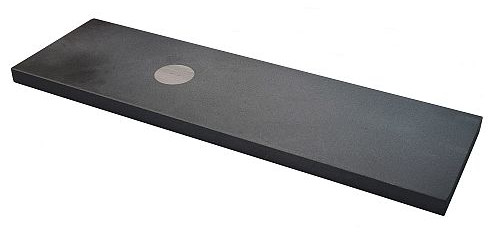

NA-16 Notch Defect Test Bar
The NA-16 Notch Test Bar complies with the requirements of MIL-STD-271E and F (Ships), paragraph 4.3.1.2, and NAVSEA-TB-T9074-AS-GIB-010/271. The procedure specifies an inspection with the ability to detect the smallest rejectable surface defects, artificial or natural, in a test specimen.
Y-300, Y-400 Yokes Lights, Y-300 Molded Induction Yoke Light for B-300 series Contour Probes, Y-400 Molded Induction Yoke Light for DA-400 and B-100 Contour Probes. The light operates from the induction of the AC magnetic field produced by the yoke
YP20 Yoke Light is a molded inspection light designed to fit a P-2 series Contour Probe. The light produces substantial close-in illumination for magnetic testing. The light operates from the induction of the AC magnetic field produced by the yoke
Y-200 Yoke Light is a molded inspection light designed to fit the B-200 Contour Probe. The light produces substantial close-in illumination for magnetic testing. The light operates from the induction of the AC magnetic field produced by the yoke
YP20 Yoke Light is a molded inspection light designed to fit a P-2 series Contour Probe. The light produces substantial close-in illumination for magnetic testing. The light operates from the induction of the AC magnetic field produced by the yoke
Y-200 Yoke Light is a molded inspection light designed to fit the B-200 Contour Probe. The light produces substantial close-in illumination for magnetic testing. The light operates from the induction of the AC magnetic field produced by the yoke

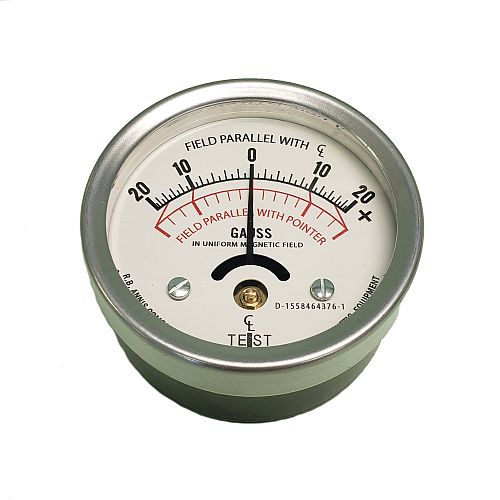

MG-25 Magnetic Field Indicator, all MG-25 Magnetic Field Indicators can be certified in accordance with ASTM E1444. Calibration includes readings taken at three points in each range and each polarity including zero.

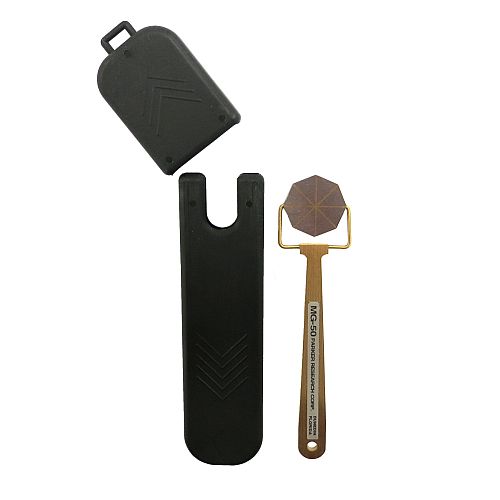

MG 50 Pie Gauge with new plastic case,includes certification.

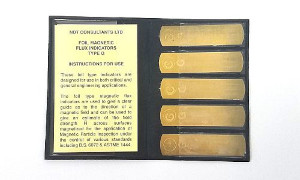

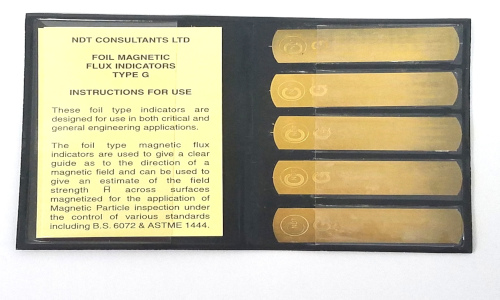

Flux Indicators, Burma Castrol Strips
Field Flux Strip (Burma Castrol) Type A (Aircraft) or Type G for General use.
Ketos Test Ring, AS 5282 Certified
